调度器基类接口 More...

#include <scheduler_base.hpp>

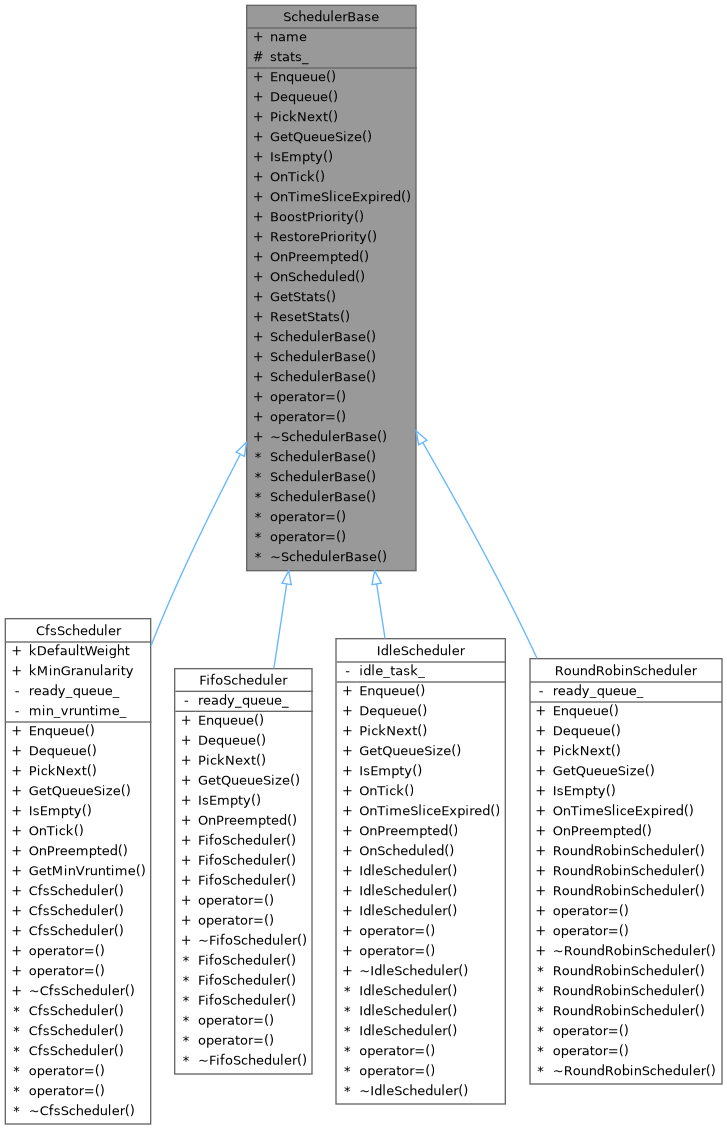

Inheritance diagram for SchedulerBase:

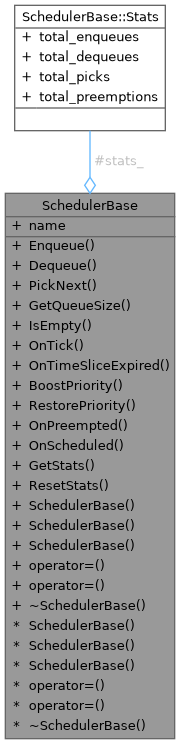

Collaboration diagram for SchedulerBase:

Classes
struct	Stats
	调度器统计信息 More...

Public Member Functions
virtual auto	Enqueue (TaskControlBlock *task) -> void=0
	将任务加入就绪队列

virtual auto	Dequeue (TaskControlBlock *task) -> void=0
	从就绪队列移除指定任务 (用于任务阻塞/退出)

virtual auto	PickNext () -> TaskControlBlock *=0
	选择下一个要运行的任务 (不会从队列中移除)

virtual auto	GetQueueSize () const -> size_t=0
	获取就绪队列中的任务数量 (用于负载均衡)

virtual auto	IsEmpty () const -> bool=0
	判断队列是否为空

virtual auto	OnTick (TaskControlBlock *current) -> bool
	Tick 更新：每个时钟中断时调用，用于更新调度器状态

virtual auto	OnTimeSliceExpired (TaskControlBlock *task) -> bool
	时间片耗尽处理：当任务时间片用完时调用

virtual auto	BoostPriority (TaskControlBlock *task, int new_priority) -> void
	优先级提升：当任务持有资源时被更高优先级任务等待，提升其优先级

virtual auto	RestorePriority (TaskControlBlock *task) -> void
	优先级恢复：当任务释放资源后，恢复其原始优先级

virtual auto	OnPreempted (TaskControlBlock *task) -> void
	任务被抢占时调用 (从 Running 变为 Ready)

virtual auto	OnScheduled (TaskControlBlock *task) -> void
	任务开始运行时调用 (从 Ready 变为 Running)

virtual auto	GetStats () const -> const Stats &
	获取调度器统计信息

virtual auto	ResetStats () -> void
	重置统计信息

构造/析构函数
	SchedulerBase ()=default

	SchedulerBase (const SchedulerBase &)=default

	SchedulerBase (SchedulerBase &&)=default

auto	operator= (const SchedulerBase &) -> SchedulerBase &=default

auto	operator= (SchedulerBase &&) -> SchedulerBase &=default

virtual	~SchedulerBase ()=default

Public Attributes
const char *	name {"Unnamed Scheduler"}
	调度器名称

Protected Attributes
Stats	stats_ {}

Detailed Description

调度器基类接口

Copyright: Copyright The SimpleKernel Contributors

提供统一的调度器接口，支持多种调度策略 (FIFO, Round-Robin, CFS, MLFQ 等) 调度器负责管理就绪队列，选择下一个要运行的任务，以及处理调度相关事件

Definition at line 18 of file scheduler_base.hpp.

Constructor & Destructor Documentation

◆ SchedulerBase() [1/3]

SchedulerBase::SchedulerBase ( )

default

◆ SchedulerBase() [2/3]

SchedulerBase::SchedulerBase ( const SchedulerBase & )

default

◆ SchedulerBase() [3/3]

SchedulerBase::SchedulerBase ( SchedulerBase && )

default

◆ ~SchedulerBase()

virtual SchedulerBase::~SchedulerBase ( )

virtualdefault

Member Function Documentation

◆ BoostPriority()

virtual auto SchedulerBase::BoostPriority	(	TaskControlBlock *	task,
		int	new_priority
	)		-> void

inlinevirtual

优先级提升：当任务持有资源时被更高优先级任务等待，提升其优先级

用于支持优先级继承协议（防止优先级反转）

Parameters

task	需要提升优先级的任务
new_priority	新的优先级（继承自等待者中的最高优先级）

Definition at line 101 of file scheduler_base.hpp.

102 {}

Here is the caller graph for this function:

◆ Dequeue()

virtual auto SchedulerBase::Dequeue ( TaskControlBlock * task ) -> void

pure virtual

从就绪队列移除指定任务 (用于任务阻塞/退出)

Parameters

task 要移除的任务

Implemented in CfsScheduler, FifoScheduler, IdleScheduler, and RoundRobinScheduler.

◆ Enqueue()

virtual auto SchedulerBase::Enqueue ( TaskControlBlock * task ) -> void

pure virtual

将任务加入就绪队列

Parameters

task 要加入的任务

Implemented in CfsScheduler, FifoScheduler, IdleScheduler, and RoundRobinScheduler.

◆ GetQueueSize()

virtual auto SchedulerBase::GetQueueSize ( ) const -> size_t

pure virtual

获取就绪队列中的任务数量 (用于负载均衡)

Returns: 队列中的任务数量

Implemented in CfsScheduler, FifoScheduler, IdleScheduler, and RoundRobinScheduler.

◆ GetStats()

virtual auto SchedulerBase::GetStats ( ) const -> const Stats&

inlinevirtual

获取调度器统计信息

Returns: 统计信息结构体

Definition at line 132 of file scheduler_base.hpp.

132{ return stats_; }

SchedulerBase::stats_

Stats stats_

Definition scheduler_base.hpp:150

Here is the caller graph for this function:

◆ IsEmpty()

virtual auto SchedulerBase::IsEmpty ( ) const -> bool

pure virtual

判断队列是否为空

Returns: 队列为空返回 true，否则返回 false

Implemented in CfsScheduler, FifoScheduler, IdleScheduler, and RoundRobinScheduler.

◆ OnPreempted()

virtual auto SchedulerBase::OnPreempted ( TaskControlBlock * task ) -> void

inlinevirtual

任务被抢占时调用 (从 Running 变为 Ready)

用于支持状态跟踪和统计

Parameters

task 被抢占的任务

Reimplemented in CfsScheduler, FifoScheduler, IdleScheduler, and RoundRobinScheduler.

Definition at line 119 of file scheduler_base.hpp.

119{}

◆ OnScheduled()

virtual auto SchedulerBase::OnScheduled ( TaskControlBlock * task ) -> void

inlinevirtual

任务开始运行时调用 (从 Ready 变为 Running)

Parameters

task 即将运行的任务

Reimplemented in IdleScheduler.

Definition at line 126 of file scheduler_base.hpp.

126{}

Here is the caller graph for this function:

◆ OnTick()

virtual auto SchedulerBase::OnTick ( TaskControlBlock * current ) -> bool

inlinevirtual

Tick 更新：每个时钟中断时调用，用于更新调度器状态

Parameters

current 当前正在运行的任务

Returns: true 表示需要重新调度; false 表示继续运行当前任务

Reimplemented in CfsScheduler, and IdleScheduler.

Definition at line 74 of file scheduler_base.hpp.

              {
    return false;
  }

Here is the caller graph for this function:

◆ OnTimeSliceExpired()

virtual auto SchedulerBase::OnTimeSliceExpired ( TaskControlBlock * task ) -> bool

inlinevirtual

时间片耗尽处理：当任务时间片用完时调用

用于支持自定义时间片处理（如 MLFQ 的优先级降级）

Parameters

task 时间片耗尽的任务

Returns: true 表示任务需要重新入队; false 表示任务不需要重新入队

Reimplemented in IdleScheduler, and RoundRobinScheduler.

Definition at line 88 of file scheduler_base.hpp.

                                                       {
    return true;
  }

Here is the caller graph for this function:

◆ operator=() [1/2]

auto SchedulerBase::operator= ( const SchedulerBase & ) -> SchedulerBase &=default

default

◆ operator=() [2/2]

auto SchedulerBase::operator= ( SchedulerBase && ) -> SchedulerBase &=default

default

◆ PickNext()

virtual auto SchedulerBase::PickNext ( ) -> TaskControlBlock *

pure virtual

选择下一个要运行的任务 (不会从队列中移除)

Returns: 下一个要运行的任务，如果队列为空则返回 nullptr

Implemented in CfsScheduler, FifoScheduler, IdleScheduler, and RoundRobinScheduler.

◆ ResetStats()

virtual auto SchedulerBase::ResetStats ( ) -> void

inlinevirtual

重置统计信息

Definition at line 137 of file scheduler_base.hpp.

137{ stats_ = {}; }

Here is the caller graph for this function:

◆ RestorePriority()

virtual auto SchedulerBase::RestorePriority ( TaskControlBlock * task ) -> void

inlinevirtual

优先级恢复：当任务释放资源后，恢复其原始优先级

Parameters

task	需要恢复优先级的任务

Definition at line 109 of file scheduler_base.hpp.

110 {}

Here is the caller graph for this function:

Member Data Documentation

◆ name

const char* SchedulerBase::name {"Unnamed Scheduler"}

调度器名称

Definition at line 21 of file scheduler_base.hpp.

21{"Unnamed Scheduler"};

◆ stats_

Stats SchedulerBase::stats_ {}

protected

Definition at line 150 of file scheduler_base.hpp.

150{};

The documentation for this class was generated from the following file:

/workspaces/SimpleKernel/src/task/include/scheduler_base.hpp
