FifoScheduler Class Reference

先来先服务 (FIFO) 调度器 More...

#include <fifo_scheduler.hpp>

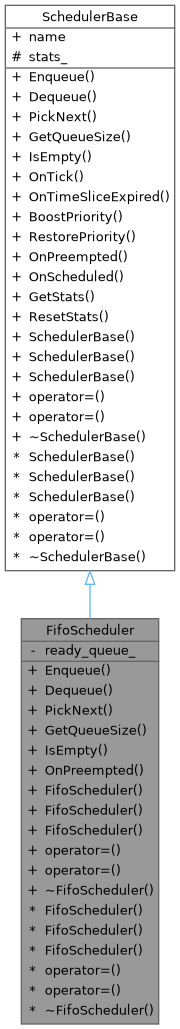

Inheritance diagram for FifoScheduler:

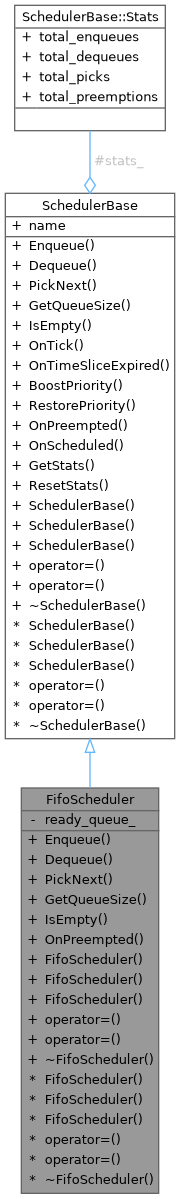

Collaboration diagram for FifoScheduler:

Public Member Functions
auto	Enqueue (TaskControlBlock *task) -> void override
	将任务加入就绪队列尾部
auto	Dequeue (TaskControlBlock *task) -> void override
	从就绪队列中移除指定任务
auto	PickNext () -> TaskControlBlock *override
	选择下一个要运行的任务（队列头部）
auto	GetQueueSize () const -> size_t override
	获取就绪队列大小
auto	IsEmpty () const -> bool override
	判断队列是否为空
auto	OnPreempted (TaskControlBlock *task) -> void override
	任务被抢占时调用
构造/析构函数
	FifoScheduler ()
	FifoScheduler (const FifoScheduler &)=delete
	FifoScheduler (FifoScheduler &&)=delete
auto	operator= (const FifoScheduler &) -> FifoScheduler &=delete
auto	operator= (FifoScheduler &&) -> FifoScheduler &=delete
	~FifoScheduler () override=default
Public Member Functions inherited from SchedulerBase
virtual auto	OnTick (TaskControlBlock *current) -> bool
	Tick 更新：每个时钟中断时调用，用于更新调度器状态
virtual auto	OnTimeSliceExpired (TaskControlBlock *task) -> bool
	时间片耗尽处理：当任务时间片用完时调用
virtual auto	BoostPriority (TaskControlBlock *task, int new_priority) -> void
	优先级提升：当任务持有资源时被更高优先级任务等待，提升其优先级
virtual auto	RestorePriority (TaskControlBlock *task) -> void
	优先级恢复：当任务释放资源后，恢复其原始优先级
virtual auto	OnScheduled (TaskControlBlock *task) -> void
	任务开始运行时调用 (从 Ready 变为 Running)
virtual auto	GetStats () const -> const Stats &
	获取调度器统计信息
virtual auto	ResetStats () -> void
	重置统计信息
	SchedulerBase ()=default
	SchedulerBase (const SchedulerBase &)=default
	SchedulerBase (SchedulerBase &&)=default
auto	operator= (const SchedulerBase &) -> SchedulerBase &=default
auto	operator= (SchedulerBase &&) -> SchedulerBase &=default
virtual	~SchedulerBase ()=default

Private Attributes
etl::list< TaskControlBlock *, kernel::config::kMaxReadyTasks >	ready_queue_
	就绪队列 (先进先出，固定容量)

Additional Inherited Members
Public Attributes inherited from SchedulerBase
const char *	name {"Unnamed Scheduler"}
	调度器名称
Protected Attributes inherited from SchedulerBase
Stats	stats_ {}

Detailed Description

先来先服务 (FIFO) 调度器

Copyright

Copyright The SimpleKernel Contributors

FIFO 调度器特点：

• 先进先出，适合对延迟敏感的实时任务
• 不可抢占，任务运行直到主动让出 CPU
• O(1) 时间复杂度

Definition at line 22 of file fifo_scheduler.hpp.

Constructor & Destructor Documentation

FifoScheduler() [1/3]

FifoScheduler::FifoScheduler ( )

inline

Definition at line 89 of file fifo_scheduler.hpp.

{ name = "FIFO"; }

FifoScheduler() [2/3]

FifoScheduler::FifoScheduler ( const FifoScheduler &  )

delete

FifoScheduler() [3/3]

FifoScheduler::FifoScheduler ( FifoScheduler &&  )

delete

~FifoScheduler()

FifoScheduler::~FifoScheduler ( )

overridedefault

Member Function Documentation

Dequeue()

auto FifoScheduler::Dequeue ( TaskControlBlock *  task ) -> void

inlineoverridevirtual

从就绪队列中移除指定任务

Parameters

task

要移除的任务

Implements SchedulerBase.

Definition at line 41 of file fifo_scheduler.hpp.

                                                        {
    ready_queue_.remove(task);
    stats_.total_dequeues++;
  }

Here is the caller graph for this function:

Enqueue()

auto FifoScheduler::Enqueue ( TaskControlBlock *  task ) -> void

inlineoverridevirtual

将任务加入就绪队列尾部

Parameters

task

要加入的任务

Implements SchedulerBase.

Definition at line 28 of file fifo_scheduler.hpp.

                                                        {
    if (ready_queue_.full()) {
      klog::Err("FifoScheduler::Enqueue: ready_queue full, dropping task");
      return;
    }
    ready_queue_.push_back(task);
    stats_.total_enqueues++;
  }

Here is the call graph for this function:

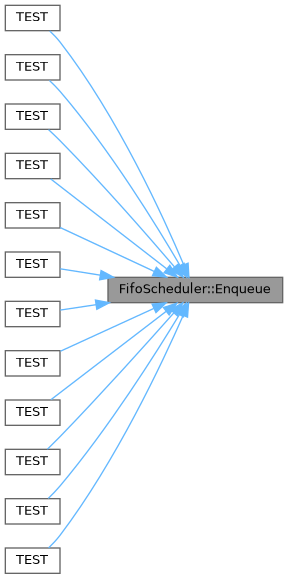

Here is the caller graph for this function:

GetQueueSize()

auto FifoScheduler::GetQueueSize ( ) const -> size_t

inlineoverridevirtual

获取就绪队列大小

Returns

队列中的任务数量

Implements SchedulerBase.

Definition at line 64 of file fifo_scheduler.hpp.

                                                             {
    return ready_queue_.size();
  }

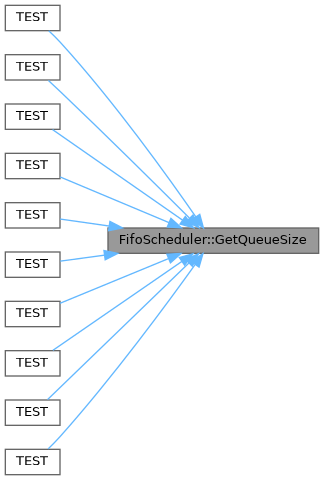

Here is the caller graph for this function:

IsEmpty()

auto FifoScheduler::IsEmpty ( ) const -> bool

inlineoverridevirtual

判断队列是否为空

Returns

队列为空返回 true，否则返回 false

Implements SchedulerBase.

Definition at line 72 of file fifo_scheduler.hpp.

                                                      {
    return ready_queue_.empty();
  }

Here is the caller graph for this function:

OnPreempted()

auto FifoScheduler::OnPreempted ( TaskControlBlock *  task ) -> void

inlineoverridevirtual

任务被抢占时调用

FIFO 是不可抢占调度器，但如果外部强制抢占，则需要统计

Parameters

task

被抢占的任务

Reimplemented from SchedulerBase.

Definition at line 83 of file fifo_scheduler.hpp.

                                                                             {
    stats_.total_preemptions++;
  }

Here is the caller graph for this function:

operator=() [1/2]

auto FifoScheduler::operator= ( const FifoScheduler &  ) -> FifoScheduler &=delete

delete

operator=() [2/2]

auto FifoScheduler::operator= ( FifoScheduler &&  ) -> FifoScheduler &=delete

delete

PickNext()

auto FifoScheduler::PickNext ( ) -> TaskControlBlock*

inlineoverridevirtual

选择下一个要运行的任务（队列头部）

Returns

下一个任务，如果队列为空则返回 nullptr

Implements SchedulerBase.

Definition at line 50 of file fifo_scheduler.hpp.

                                                              {
    if (ready_queue_.empty()) {
      return nullptr;
    }
    TaskControlBlock* next = ready_queue_.front();
    ready_queue_.pop_front();
    stats_.total_picks++;
    return next;
  }

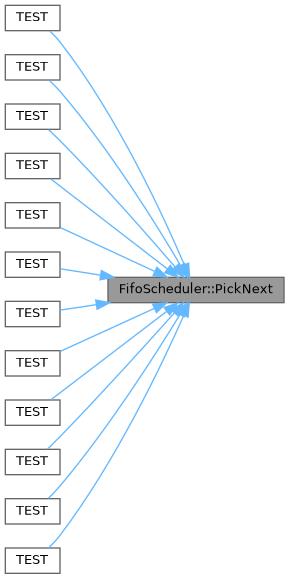

Here is the caller graph for this function:

Member Data Documentation

ready_queue_

etl::list<TaskControlBlock*, kernel::config::kMaxReadyTasks> FifoScheduler::ready_queue_

private

就绪队列 (先进先出，固定容量)

Definition at line 99 of file fifo_scheduler.hpp.

---

The documentation for this class was generated from the following file:

• /workspaces/SimpleKernel/src/task/include/fifo_scheduler.hpp
