RoundRobinScheduler Class Reference

Round-Robin 调度器 More...

#include <rr_scheduler.hpp>

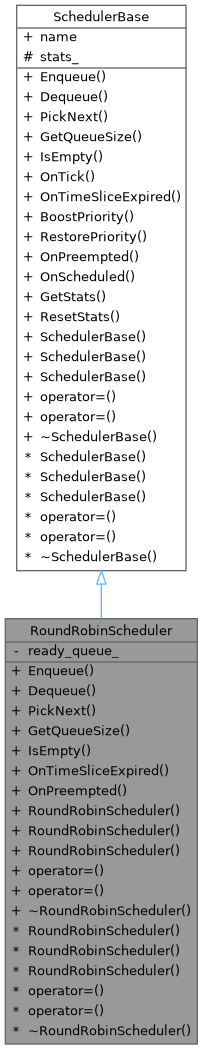

Inheritance diagram for RoundRobinScheduler:

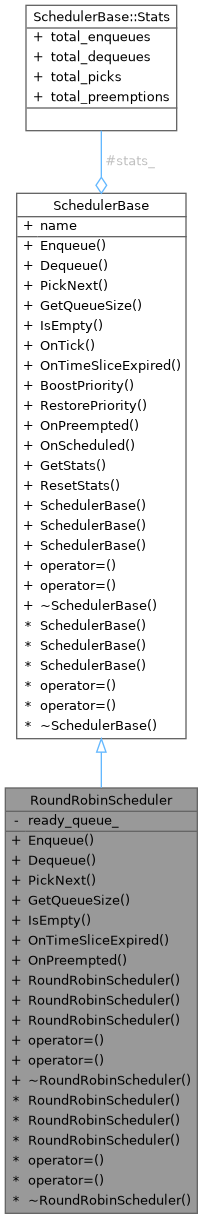

Collaboration diagram for RoundRobinScheduler:

Public Member Functions
auto	Enqueue (TaskControlBlock *task) -> void override
	将任务加入就绪队列尾部
auto	Dequeue (TaskControlBlock *task) -> void override
	从就绪队列中移除指定任务
auto	PickNext () -> TaskControlBlock *override
	选择下一个要运行的任务
auto	GetQueueSize () const -> size_t override
	获取就绪队列大小
auto	IsEmpty () const -> bool override
	判断队列是否为空
auto	OnTimeSliceExpired (TaskControlBlock *task) -> bool override
	时间片耗尽处理
auto	OnPreempted (TaskControlBlock *task) -> void override
	任务被抢占时调用
构造/析构函数
	RoundRobinScheduler ()=default
	RoundRobinScheduler (const RoundRobinScheduler &)=delete
	RoundRobinScheduler (RoundRobinScheduler &&)=delete
auto	operator= (const RoundRobinScheduler &) -> RoundRobinScheduler &=delete
auto	operator= (RoundRobinScheduler &&) -> RoundRobinScheduler &=delete
	~RoundRobinScheduler () override=default
Public Member Functions inherited from SchedulerBase
virtual auto	OnTick (TaskControlBlock *current) -> bool
	Tick 更新：每个时钟中断时调用，用于更新调度器状态
virtual auto	BoostPriority (TaskControlBlock *task, int new_priority) -> void
	优先级提升：当任务持有资源时被更高优先级任务等待，提升其优先级
virtual auto	RestorePriority (TaskControlBlock *task) -> void
	优先级恢复：当任务释放资源后，恢复其原始优先级
virtual auto	OnScheduled (TaskControlBlock *task) -> void
	任务开始运行时调用 (从 Ready 变为 Running)
virtual auto	GetStats () const -> const Stats &
	获取调度器统计信息
virtual auto	ResetStats () -> void
	重置统计信息
	SchedulerBase ()=default
	SchedulerBase (const SchedulerBase &)=default
	SchedulerBase (SchedulerBase &&)=default
auto	operator= (const SchedulerBase &) -> SchedulerBase &=default
auto	operator= (SchedulerBase &&) -> SchedulerBase &=default
virtual	~SchedulerBase ()=default

Private Attributes
etl::list< TaskControlBlock *, kernel::config::kMaxReadyTasks >	ready_queue_
	就绪队列 (双向链表，支持从头部取、向尾部放，固定容量)

Additional Inherited Members
Public Attributes inherited from SchedulerBase
const char *	name {"Unnamed Scheduler"}
	调度器名称
Protected Attributes inherited from SchedulerBase
Stats	stats_ {}

Detailed Description

Round-Robin 调度器

Copyright

Copyright The SimpleKernel Contributors

时间片轮转调度器，所有任务按照 FIFO 顺序排队。 每个任务获得相同的时间片，时间片用完后放回队列尾部。

Definition at line 20 of file rr_scheduler.hpp.

Constructor & Destructor Documentation

RoundRobinScheduler() [1/3]

RoundRobinScheduler::RoundRobinScheduler ( )

default

RoundRobinScheduler() [2/3]

RoundRobinScheduler::RoundRobinScheduler ( const RoundRobinScheduler &  )

delete

RoundRobinScheduler() [3/3]

RoundRobinScheduler::RoundRobinScheduler ( RoundRobinScheduler &&  )

delete

~RoundRobinScheduler()

RoundRobinScheduler::~RoundRobinScheduler ( )

overridedefault

Member Function Documentation

Dequeue()

auto RoundRobinScheduler::Dequeue ( TaskControlBlock *  task ) -> void

inlineoverridevirtual

从就绪队列中移除指定任务

Parameters

task	要移除的任务控制块指针

用于任务主动退出或被阻塞等场景。

Implements SchedulerBase.

Definition at line 49 of file rr_scheduler.hpp.

                                                        {
    if (!task) {
      return;
    }

    for (auto it = ready_queue_.begin(); it != ready_queue_.end(); ++it) {
      if (*it == task) {
        ready_queue_.erase(it);
        stats_.total_dequeues++;
        break;
      }
    }
  }

Here is the caller graph for this function:

Enqueue()

auto RoundRobinScheduler::Enqueue ( TaskControlBlock *  task ) -> void

inlineoverridevirtual

将任务加入就绪队列尾部

Parameters

task

任务控制块指针

重置任务的时间片并将其加入队列尾部，实现公平的时间片轮转。

Implements SchedulerBase.

Definition at line 28 of file rr_scheduler.hpp.

                                                        {
    if (task) {
      if (ready_queue_.full()) {
        klog::Err(
            "RoundRobinScheduler::Enqueue: ready_queue full, dropping task");
        return;
      }
      // 重新分配时间片
      task->sched_info.time_slice_remaining =
          task->sched_info.time_slice_default;
      ready_queue_.push_back(task);
      stats_.total_enqueues++;
    }
  }

Here is the call graph for this function:

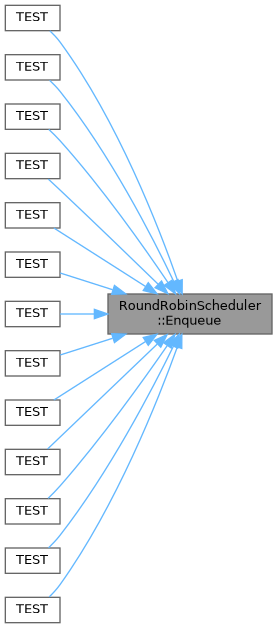

Here is the caller graph for this function:

GetQueueSize()

auto RoundRobinScheduler::GetQueueSize ( ) const -> size_t

inlineoverridevirtual

获取就绪队列大小

Returns

size_t 队列中的任务数量

Implements SchedulerBase.

Definition at line 83 of file rr_scheduler.hpp.

                                                             {
    return ready_queue_.size();
  }

Here is the caller graph for this function:

IsEmpty()

auto RoundRobinScheduler::IsEmpty ( ) const -> bool

inlineoverridevirtual

判断队列是否为空

Returns

bool 队列为空返回 true

Implements SchedulerBase.

Definition at line 91 of file rr_scheduler.hpp.

                                                      {
    return ready_queue_.empty();
  }

Here is the caller graph for this function:

OnPreempted()

auto RoundRobinScheduler::OnPreempted ( TaskControlBlock *  task ) -> void

inlineoverridevirtual

任务被抢占时调用

Parameters

task

被抢占的任务

Reimplemented from SchedulerBase.

Definition at line 116 of file rr_scheduler.hpp.

                                                                             {
    stats_.total_preemptions++;
  }

Here is the caller graph for this function:

OnTimeSliceExpired()

auto RoundRobinScheduler::OnTimeSliceExpired ( TaskControlBlock *  task ) -> bool

inlineoverridevirtual

时间片耗尽处理

Parameters

task

时间片耗尽的任务

Returns

bool 返回 true 表示需要重新入队

Round-Robin 调度器在时间片耗尽时重置时间片并将任务放回队列尾部。

Reimplemented from SchedulerBase.

Definition at line 102 of file rr_scheduler.hpp.

                       {
    if (task) {
      // 重新分配时间片
      task->sched_info.time_slice_remaining =
          task->sched_info.time_slice_default;
    }
    return true;
  }

Here is the caller graph for this function:

operator=() [1/2]

auto RoundRobinScheduler::operator= ( const RoundRobinScheduler &  ) -> RoundRobinScheduler &=delete

delete

operator=() [2/2]

auto RoundRobinScheduler::operator= ( RoundRobinScheduler &&  ) -> RoundRobinScheduler &=delete

delete

PickNext()

auto RoundRobinScheduler::PickNext ( ) -> TaskControlBlock*

inlineoverridevirtual

选择下一个要运行的任务

Returns

TaskControlBlock* 下一个任务，如果队列为空则返回 nullptr

从队列头部取出任务，实现 Round-Robin 轮转。

Implements SchedulerBase.

Definition at line 69 of file rr_scheduler.hpp.

                                                              {
    if (ready_queue_.empty()) {
      return nullptr;
    }
    auto next = ready_queue_.front();
    ready_queue_.pop_front();
    stats_.total_picks++;
    return next;
  }

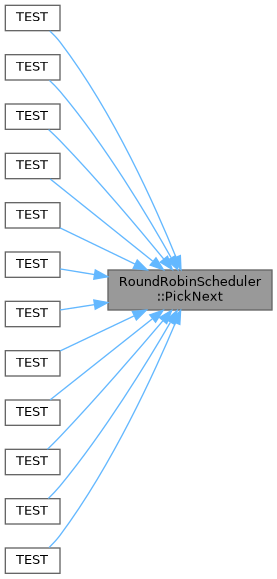

Here is the caller graph for this function:

Member Data Documentation

ready_queue_

etl::list<TaskControlBlock*, kernel::config::kMaxReadyTasks> RoundRobinScheduler::ready_queue_

private

就绪队列 (双向链表，支持从头部取、向尾部放，固定容量)

Definition at line 132 of file rr_scheduler.hpp.

---

The documentation for this class was generated from the following file:

• /workspaces/SimpleKernel/src/task/include/rr_scheduler.hpp
