Gic Class Reference

GIC 中断控制器驱动 More...

#include <gic.h>

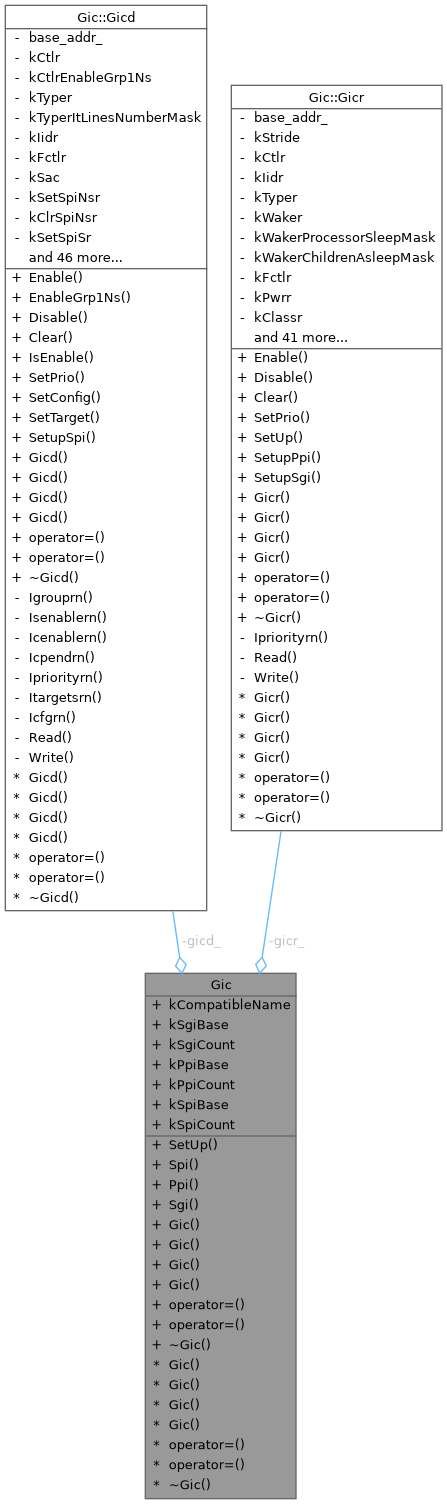

Collaboration diagram for Gic:

Classes
class	Gicd
	GIC Distributor 接口 More...
class	Gicr
	GIC Redistributor 接口 More...

Public Member Functions
auto	SetUp () const -> void
	初始化当前 CPU 的 GIC 配置
auto	Spi (uint32_t intid, uint32_t cpuid) const -> void
	配置共享外设中断 (SPI)
auto	Ppi (uint32_t intid, uint32_t cpuid) const -> void
	配置私有外设中断 (PPI)
auto	Sgi (uint32_t intid, uint32_t cpuid) const -> void
	配置软件生成中断 (SGI)
构造/析构函数
	Gic (uint64_t gicd_base_addr, uint64_t gicr_base_addr)
	构造函数
	Gic ()=default
	Gic (const Gic &)=delete
	Gic (Gic &&)=delete
auto	operator= (const Gic &) -> Gic &=delete
auto	operator= (Gic &&) -> Gic &=default
	~Gic ()=default

Static Public Attributes
static constexpr const char *	kCompatibleName = "arm,gic-v3"
static constexpr size_t	kSgiBase = 0
static constexpr size_t	kSgiCount = 16
static constexpr size_t	kPpiBase = 16
static constexpr size_t	kPpiCount = 16
static constexpr size_t	kSpiBase = 32
static constexpr size_t	kSpiCount = 988

Private Attributes
Gicd	gicd_ {}
	Distributor 实例
Gicr	gicr_ {}
	Redistributor 实例

Detailed Description

GIC 中断控制器驱动

Copyright

Copyright The SimpleKernel Contributors

See also

https://developer.arm.com/documentation/100095/0003/Generic-Interrupt-Controller-CPU-Interface/GIC-programmers-model/CPU-interface-memory-mapped-register-descriptions

Definition at line 17 of file gic.h.

Constructor & Destructor Documentation

Gic() [1/4]

Gic::Gic ( uint64_t  gicd_base_addr, uint64_t  gicr_base_addr  )

explicit

构造函数

Parameters

gicd_base_addr	GIC Distributor 地址
gicr_base_addr	GIC Redistributor 地址

Copyright

Copyright The SimpleKernel Contributors

Definition at line 13 of file gic.cpp.

    : gicd_(gicd_base_addr), gicr_(gicr_base_addr) {
  cpu_io::ICC_IGRPEN1_EL1::Enable::Clear();
  cpu_io::ICC_PMR_EL1::Priority::Set();

  gicd_.EnableGrp1Ns();

  klog::Info("Gic init.");
}

Here is the call graph for this function:

Gic() [2/4]

Gic::Gic ( )

default

Gic() [3/4]

Gic::Gic ( const Gic &  )

delete

Gic() [4/4]

Gic::Gic ( Gic &&  )

delete

~Gic()

Gic::~Gic ( )

default

Member Function Documentation

operator=() [1/2]

auto Gic::operator= ( const Gic &  ) -> Gic &=delete

delete

operator=() [2/2]

auto Gic::operator= ( Gic &&  ) -> Gic &=default

default

Ppi()

auto Gic::Ppi	(	uint32_t	intid,
		uint32_t	cpuid
	)		const -> void

配置私有外设中断 (PPI)

Parameters

intid	中断号
cpuid	CPU 编号

Definition at line 35 of file gic.cpp.

                                                          {
  gicr_.SetupPpi(intid, cpuid);
}

Here is the caller graph for this function:

SetUp()

auto Gic::SetUp

(

)

const -> void

初始化当前 CPU 的 GIC 配置

Definition at line 23 of file gic.cpp.

                              {
  cpu_io::ICC_IGRPEN1_EL1::Enable::Clear();
  cpu_io::ICC_PMR_EL1::Priority::Set();
  gicd_.EnableGrp1Ns();

  gicr_.SetUp();
}

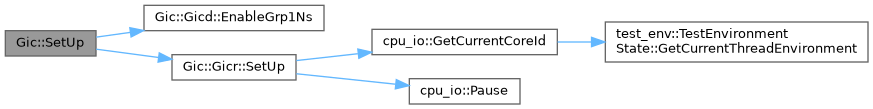

Here is the call graph for this function:

Here is the caller graph for this function:

Sgi()

auto Gic::Sgi	(	uint32_t	intid,
		uint32_t	cpuid
	)		const -> void

配置软件生成中断 (SGI)

Parameters

intid	中断号
cpuid	CPU 编号

Definition at line 39 of file gic.cpp.

                                                          {
  gicr_.SetupSgi(intid, cpuid);
}

Here is the caller graph for this function:

Spi()

auto Gic::Spi	(	uint32_t	intid,
		uint32_t	cpuid
	)		const -> void

配置共享外设中断 (SPI)

Parameters

intid	中断号
cpuid	CPU 编号

Definition at line 31 of file gic.cpp.

                                                          {
  gicd_.SetupSpi(intid, cpuid);
}

Here is the caller graph for this function:

Member Data Documentation

gicd_

Gicd Gic::gicd_ {}

private

Distributor 实例

Definition at line 678 of file gic.h.

{};

gicr_

Gicr Gic::gicr_ {}

private

Redistributor 实例

Definition at line 680 of file gic.h.

{};

kCompatibleName

constexpr const char* Gic::kCompatibleName = "arm,gic-v3"

staticconstexpr

Definition at line 19 of file gic.h.

kPpiBase

constexpr size_t Gic::kPpiBase = 16

staticconstexpr

Definition at line 23 of file gic.h.

kPpiCount

constexpr size_t Gic::kPpiCount = 16

staticconstexpr

Definition at line 24 of file gic.h.

kSgiBase

constexpr size_t Gic::kSgiBase = 0

staticconstexpr

Definition at line 21 of file gic.h.

kSgiCount

constexpr size_t Gic::kSgiCount = 16

staticconstexpr

Definition at line 22 of file gic.h.

kSpiBase

constexpr size_t Gic::kSpiBase = 32

staticconstexpr

Definition at line 25 of file gic.h.

kSpiCount

constexpr size_t Gic::kSpiCount = 988

staticconstexpr

Definition at line 26 of file gic.h.

---

The documentation for this class was generated from the following files:

• /workspaces/SimpleKernel/src/arch/aarch64/gic/include/gic.h
• /workspaces/SimpleKernel/src/arch/aarch64/gic/gic.cpp
