Pl011Driver Class Reference

PL011 UART 驱动 More...

#include <pl011_driver.hpp>

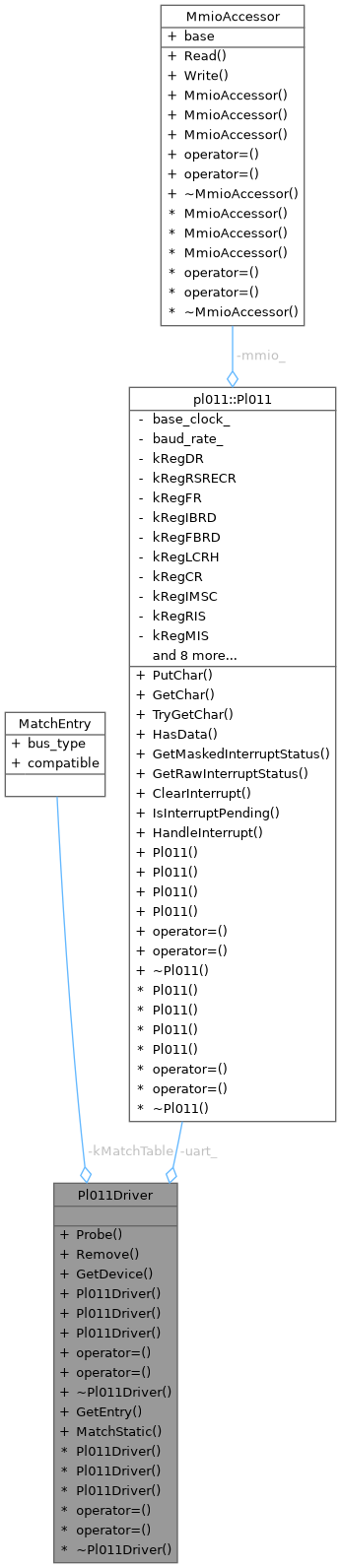

Collaboration diagram for Pl011Driver:

Public Types
using	Pl011Type = pl011::Pl011

Public Member Functions
auto	Probe (DeviceNode &node) -> Expected< void >
	初始化 PL011 UART。
auto	Remove (DeviceNode &node) -> Expected< void >
	卸载驱动
auto	GetDevice () -> Pl011Type *
	获取 PL011 设备实例
构造/析构函数
	Pl011Driver ()=default
	Pl011Driver (const Pl011Driver &)=delete
	Pl011Driver (Pl011Driver &&)=default
auto	operator= (const Pl011Driver &) -> Pl011Driver &=delete
auto	operator= (Pl011Driver &&) -> Pl011Driver &=default
	~Pl011Driver ()=default

Static Public Member Functions
static auto	GetEntry () -> const DriverEntry &
	返回用于注册的 DriverEntry
static auto	MatchStatic (DeviceNode &node) -> bool
	硬件检测：MMIO 区域大小是否足够 PL011？

Private Attributes
Pl011Type	uart_ {}

Static Private Attributes
static constexpr MatchEntry	kMatchTable []

Detailed Description

PL011 UART 驱动

提供 PL011 UART 设备的驱动程序实现，包括设备检测、初始化和访问接口。

Definition at line 24 of file pl011_driver.hpp.

Member Typedef Documentation

Pl011Type

using Pl011Driver::Pl011Type = pl011::Pl011

Definition at line 26 of file pl011_driver.hpp.

Constructor & Destructor Documentation

Pl011Driver() [1/3]

Pl011Driver::Pl011Driver ( )

default

Here is the caller graph for this function:

Pl011Driver() [2/3]

Pl011Driver::Pl011Driver ( const Pl011Driver &  )

delete

Pl011Driver() [3/3]

Pl011Driver::Pl011Driver ( Pl011Driver &&  )

default

~Pl011Driver()

Pl011Driver::~Pl011Driver ( )

default

Member Function Documentation

GetDevice()

auto Pl011Driver::GetDevice ( ) -> Pl011Type*

inline

获取 PL011 设备实例

Returns

设备实例指针

Definition at line 94 of file pl011_driver.hpp.

{ return &uart_; }

GetEntry()

static auto Pl011Driver::GetEntry ( ) -> const DriverEntry&

inlinestatic

返回用于注册的 DriverEntry

Note

使用 Pl011DriverSingleton::instance() 访问单例。

Returns

DriverEntry 常量引用

Definition at line 34 of file pl011_driver.hpp.

                                                             {
    static const DriverEntry entry{
        .name = "pl011",
        .match_table = etl::span<const MatchEntry>(kMatchTable),
        .match = etl::delegate<bool(
            DeviceNode&)>::create<&Pl011Driver::MatchStatic>(),
        .probe = etl::delegate<Expected<void>(DeviceNode&)>::create<
            Pl011Driver, &Pl011Driver::Probe>(
            etl::singleton<Pl011Driver>::instance()),
        .remove = etl::delegate<Expected<void>(DeviceNode&)>::create<
            Pl011Driver, &Pl011Driver::Remove>(
            etl::singleton<Pl011Driver>::instance()),
    };
    return entry;
  }

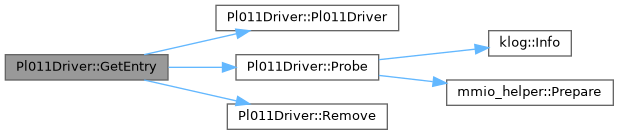

Here is the call graph for this function:

MatchStatic()

static auto Pl011Driver::MatchStatic ( DeviceNode &  node ) -> bool

inlinestatic

硬件检测：MMIO 区域大小是否足够 PL011？

PL011 没有可读的 magic 寄存器，仅验证 MMIO 资源。

Returns

true 如果 mmio_base 非零且 mmio_size 足够

Definition at line 57 of file pl011_driver.hpp.

                                                                  {
    static constexpr size_t kMinRegisterSpace = 0x48;
    return node.mmio_base != 0 && node.mmio_size >= kMinRegisterSpace;
  }

operator=() [1/2]

auto Pl011Driver::operator= ( const Pl011Driver &  ) -> Pl011Driver &=delete

delete

operator=() [2/2]

auto Pl011Driver::operator= ( Pl011Driver &&  ) -> Pl011Driver &=default

default

Probe()

auto Pl011Driver::Probe ( DeviceNode &  node ) -> Expected<void>

inline

初始化 PL011 UART。

Precondition

node.mmio_base != 0

Postcondition

uart_ 有效；node.type == DeviceType::kChar

Definition at line 68 of file pl011_driver.hpp.

                                                               {
    auto ctx = mmio_helper::Prepare(node, 0x1000);
    if (!ctx) {
      return std::unexpected(ctx.error());
    }

    uart_ = Pl011Type(ctx->base);
    node.type = DeviceType::kChar;
    klog::Info("Pl011Driver: UART at {:#x} bound", node.mmio_base);
    return {};
  }

Here is the call graph for this function:

Here is the caller graph for this function:

Remove()

auto Pl011Driver::Remove ( DeviceNode &  node ) -> Expected<void>

inline

卸载驱动

Parameters

node

设备节点

Returns

Expected<void> 成功返回空值

Definition at line 85 of file pl011_driver.hpp.

                        {
    return {};
  }

Here is the caller graph for this function:

Member Data Documentation

kMatchTable

constexpr MatchEntry Pl011Driver::kMatchTable[]

staticconstexprprivate

Initial value:

= {
      {BusType::kPlatform, "arm,pl011"},
  }

Definition at line 107 of file pl011_driver.hpp.

                                              {
      {BusType::kPlatform, "arm,pl011"},
  };

uart_

Pl011Type Pl011Driver::uart_ {}

private

Definition at line 111 of file pl011_driver.hpp.

{};

---

The documentation for this class was generated from the following file:

• /workspaces/SimpleKernel/src/device/pl011/pl011_driver.hpp
