PL011 串口驱动 More...

#include <pl011.hpp>

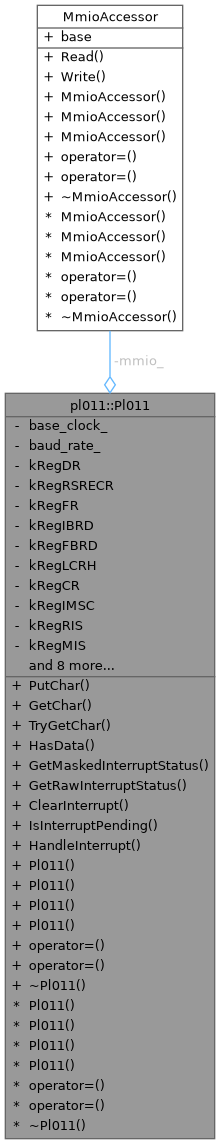

Collaboration diagram for pl011::Pl011:

Public Member Functions
auto	PutChar (uint8_t c) const -> void
	写入一个字符

auto	GetChar () const -> uint8_t
	阻塞式读取一个字符

auto	TryGetChar () const -> std::optional< uint8_t >
	非阻塞式尝试读取一个字符

auto	HasData () const -> bool
	检查接收缓冲区是否有数据可读（不消耗数据）

auto	GetMaskedInterruptStatus () const -> uint32_t
	读取屏蔽后的中断状态寄存器（MIS）

auto	GetRawInterruptStatus () const -> uint32_t
	读取原始中断状态寄存器（RIS）

auto	ClearInterrupt (uint32_t mask) const -> void
	清除指定中断

auto	IsInterruptPending () const -> bool
	检查是否有中断挂起

template<typename Callback >
auto	HandleInterrupt (Callback &&callback) -> void
	处理串口接收中断，对每个收到的字符调用回调

构造/析构函数
	Pl011 (uint64_t dev_addr, uint64_t clock=0, uint64_t baud_rate=0)
	构造函数

	Pl011 ()=default

	Pl011 (const Pl011 &)=delete

	Pl011 (Pl011 &&)=default

auto	operator= (const Pl011 &) -> Pl011 &=delete

auto	operator= (Pl011 &&) -> Pl011 &=default

	~Pl011 ()=default

Private Attributes
MmioAccessor	mmio_ {}

uint64_t	base_clock_ {0}

uint64_t	baud_rate_ {0}

Static Private Attributes
static constexpr uint32_t	kRegDR = 0x00
	data register

static constexpr uint32_t	kRegRSRECR = 0x04
	receive status or error clear

static constexpr uint32_t	kRegFR = 0x18
	flag register

static constexpr uint32_t	kRegIBRD = 0x24
	integer baud register

static constexpr uint32_t	kRegFBRD = 0x28
	fractional baud register

static constexpr uint32_t	kRegLCRH = 0x2C
	line control register

static constexpr uint32_t	kRegCR = 0x30
	control register

static constexpr uint32_t	kRegIMSC = 0x38
	interrupt mask set/clear

static constexpr uint32_t	kRegRIS = 0x3C
	raw interrupt status register

static constexpr uint32_t	kRegMIS = 0x40
	masked interrupt status register

static constexpr uint32_t	kRegICR = 0x44
	interrupt clear register

static constexpr uint32_t	kFRTxFIFO = (1 << 5)
	flag register bits

static constexpr uint32_t	kFRRXFE = (1 << 4)

static constexpr uint32_t	kLCRHWlen8 = (3 << 5)
	line control register bits

static constexpr uint32_t	kCREnable = (1 << 0)
	control register bits

static constexpr uint32_t	kCRTxEnable = (1 << 8)

static constexpr uint32_t	kCRRxEnable = (1 << 9)

static constexpr uint32_t	kIMSCRxim = (1 << 4)
	interrupt mask bits

Detailed Description

PL011 串口驱动

通过 MMIO 访问 PL011 UART 寄存器，提供字符读写功能。 Header-only 实现，使用 MmioAccessor 进行寄存器访问。

See also: https://developer.arm.com/documentation/ddi0183/g/

Definition at line 22 of file pl011.hpp.

Constructor & Destructor Documentation

◆ Pl011() [1/4]

pl011::Pl011::Pl011	(	uint64_t	dev_addr,
		uint64_t	clock = `0`,
		uint64_t	baud_rate = `0`
	)

inlineexplicit

构造函数

Parameters

dev_addr	设备 MMIO 基地址
clock	串口时钟（0 表示不设置波特率）
baud_rate	波特率（0 表示不设置波特率）

Definition at line 124 of file pl011.hpp.

      : mmio_(dev_addr), base_clock_(clock), baud_rate_(baud_rate) {
    mmio_.Write<uint32_t>(kRegRSRECR, 0);
    mmio_.Write<uint32_t>(kRegCR, 0);

    if (baud_rate_ != 0) {
      uint32_t divisor = (base_clock_ * 4) / baud_rate_;
      mmio_.Write<uint32_t>(kRegIBRD, divisor >> 6);
      mmio_.Write<uint32_t>(kRegFBRD, divisor & 0x3f);
    }

    mmio_.Write<uint32_t>(kRegLCRH, kLCRHWlen8);
    mmio_.Write<uint32_t>(kRegIMSC, kIMSCRxim);
    mmio_.Write<uint32_t>(kRegCR, kCREnable | kCRTxEnable | kCRRxEnable);
  }

Here is the call graph for this function:

◆ Pl011() [2/4]

pl011::Pl011::Pl011 ( )

default

◆ Pl011() [3/4]

pl011::Pl011::Pl011 ( const Pl011 & )

delete

◆ Pl011() [4/4]

pl011::Pl011::Pl011 ( Pl011 && )

default

◆ ~Pl011()

pl011::Pl011::~Pl011 ( )

default

Member Function Documentation

◆ ClearInterrupt()

auto pl011::Pl011::ClearInterrupt ( uint32_t mask ) const -> void

inline

清除指定中断

向 ICR 寄存器写入位掩码以清除对应的中断。

Parameters

mask 要清除的中断位掩码

Definition at line 93 of file pl011.hpp.

                                                   {
    mmio_.Write<uint32_t>(kRegICR, mask);
  }

Here is the call graph for this function:

◆ GetChar()

auto pl011::Pl011::GetChar ( ) const -> uint8_t

inline

阻塞式读取一个字符

Returns: 读取到的字符

Definition at line 38 of file pl011.hpp.

                                                {
    while (mmio_.Read<uint32_t>(kRegFR) & kFRRXFE) {
    }
    return static_cast<uint8_t>(mmio_.Read<uint32_t>(kRegDR));
  }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMaskedInterruptStatus()

auto pl011::Pl011::GetMaskedInterruptStatus ( ) const -> uint32_t

inline

读取屏蔽后的中断状态寄存器（MIS）

返回经 IMSC 屏蔽后的中断状态，只包含被使能的中断源。

Returns: 中断状态位掩码

See also: ARM PL011 Technical Reference Manual

Definition at line 71 of file pl011.hpp.

                                                                  {
    return mmio_.Read<uint32_t>(kRegMIS);
  }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRawInterruptStatus()

auto pl011::Pl011::GetRawInterruptStatus ( ) const -> uint32_t

inline

读取原始中断状态寄存器（RIS）

返回所有中断源的原始状态（不经 IMSC 屏蔽）。

Returns: 原始中断状态位掩码

Definition at line 82 of file pl011.hpp.

                                                               {
    return mmio_.Read<uint32_t>(kRegRIS);
  }

Here is the call graph for this function:

◆ HandleInterrupt()

template<typename Callback >

auto pl011::Pl011::HandleInterrupt ( Callback && callback ) -> void

inline

处理串口接收中断，对每个收到的字符调用回调

Parameters

callback 字符接收回调，签名 void(uint8_t ch)

Definition at line 110 of file pl011.hpp.

                                                    {
    while (HasData()) {
      callback(GetChar());
    }
  }

Here is the call graph for this function:

◆ HasData()

auto pl011::Pl011::HasData ( ) const -> bool

inline

检查接收缓冲区是否有数据可读（不消耗数据）

Returns: true 如果有数据可读

Definition at line 59 of file pl011.hpp.

                                             {
    return !(mmio_.Read<uint32_t>(kRegFR) & kFRRXFE);
  }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsInterruptPending()

auto pl011::Pl011::IsInterruptPending ( ) const -> bool

inline

检查是否有中断挂起

Returns: true 如果有屏蔽后的中断挂起

Definition at line 101 of file pl011.hpp.

                                                        {
    return GetMaskedInterruptStatus() != 0;
  }

Here is the call graph for this function:

◆ operator=() [1/2]

auto pl011::Pl011::operator= ( const Pl011 & ) -> Pl011 &=delete

delete

◆ operator=() [2/2]

auto pl011::Pl011::operator= ( Pl011 && ) -> Pl011 &=default

default

◆ PutChar()

auto pl011::Pl011::PutChar ( uint8_t c ) const -> void

inline

写入一个字符

Parameters

c 待写入的字符

Definition at line 28 of file pl011.hpp.

                                        {
    while (mmio_.Read<uint32_t>(kRegFR) & kFRTxFIFO) {
    }
    mmio_.Write<uint32_t>(kRegDR, c);
  }

Here is the call graph for this function:

◆ TryGetChar()

auto pl011::Pl011::TryGetChar ( ) const -> std::optional<uint8_t>

inline

非阻塞式尝试读取一个字符

Returns: 读取到的字符，如果没有数据则返回 std::nullopt

Definition at line 48 of file pl011.hpp.

                                                                {
    if (mmio_.Read<uint32_t>(kRegFR) & kFRRXFE) {
      return std::nullopt;
    }
    return static_cast<uint8_t>(mmio_.Read<uint32_t>(kRegDR));
  }

Here is the call graph for this function:

Member Data Documentation

◆ base_clock_

uint64_t pl011::Pl011::base_clock_ {0}

private

Definition at line 187 of file pl011.hpp.

187{0};

◆ baud_rate_

uint64_t pl011::Pl011::baud_rate_ {0}

private

Definition at line 188 of file pl011.hpp.

188{0};

◆ kCREnable

constexpr uint32_t pl011::Pl011::kCREnable = (1 << 0)

staticconstexprprivate

control register bits

Definition at line 179 of file pl011.hpp.

◆ kCRRxEnable

constexpr uint32_t pl011::Pl011::kCRRxEnable = (1 << 9)

staticconstexprprivate

Definition at line 181 of file pl011.hpp.

◆ kCRTxEnable

constexpr uint32_t pl011::Pl011::kCRTxEnable = (1 << 8)

staticconstexprprivate

Definition at line 180 of file pl011.hpp.

◆ kFRRXFE

constexpr uint32_t pl011::Pl011::kFRRXFE = (1 << 4)

staticconstexprprivate

Definition at line 173 of file pl011.hpp.

◆ kFRTxFIFO

constexpr uint32_t pl011::Pl011::kFRTxFIFO = (1 << 5)

staticconstexprprivate

flag register bits

Definition at line 172 of file pl011.hpp.

◆ kIMSCRxim

constexpr uint32_t pl011::Pl011::kIMSCRxim = (1 << 4)

staticconstexprprivate

interrupt mask bits

Definition at line 184 of file pl011.hpp.

◆ kLCRHWlen8

constexpr uint32_t pl011::Pl011::kLCRHWlen8 = (3 << 5)

staticconstexprprivate

line control register bits

Definition at line 176 of file pl011.hpp.

◆ kRegCR

constexpr uint32_t pl011::Pl011::kRegCR = 0x30

staticconstexprprivate

control register

Definition at line 161 of file pl011.hpp.

◆ kRegDR

constexpr uint32_t pl011::Pl011::kRegDR = 0x00

staticconstexprprivate

data register

Definition at line 149 of file pl011.hpp.

◆ kRegFBRD

constexpr uint32_t pl011::Pl011::kRegFBRD = 0x28

staticconstexprprivate

fractional baud register

Definition at line 157 of file pl011.hpp.

◆ kRegFR

constexpr uint32_t pl011::Pl011::kRegFR = 0x18

staticconstexprprivate

flag register

Definition at line 153 of file pl011.hpp.

◆ kRegIBRD

constexpr uint32_t pl011::Pl011::kRegIBRD = 0x24

staticconstexprprivate

integer baud register

Definition at line 155 of file pl011.hpp.

◆ kRegICR

constexpr uint32_t pl011::Pl011::kRegICR = 0x44

staticconstexprprivate

interrupt clear register

Definition at line 169 of file pl011.hpp.

◆ kRegIMSC

constexpr uint32_t pl011::Pl011::kRegIMSC = 0x38

staticconstexprprivate

interrupt mask set/clear

Definition at line 163 of file pl011.hpp.

◆ kRegLCRH

constexpr uint32_t pl011::Pl011::kRegLCRH = 0x2C

staticconstexprprivate

line control register

Definition at line 159 of file pl011.hpp.

◆ kRegMIS

constexpr uint32_t pl011::Pl011::kRegMIS = 0x40

staticconstexprprivate

masked interrupt status register

Definition at line 167 of file pl011.hpp.

◆ kRegRIS

constexpr uint32_t pl011::Pl011::kRegRIS = 0x3C

staticconstexprprivate

raw interrupt status register

Definition at line 165 of file pl011.hpp.

◆ kRegRSRECR

constexpr uint32_t pl011::Pl011::kRegRSRECR = 0x04

staticconstexprprivate

receive status or error clear

Definition at line 151 of file pl011.hpp.

◆ mmio_

MmioAccessor pl011::Pl011::mmio_ {}

private

Definition at line 186 of file pl011.hpp.

186{};

The documentation for this class was generated from the following file:

/workspaces/SimpleKernel/src/device/pl011/pl011.hpp
