test_env::TestEnvironmentState Class Reference

测试环境状态 More...

#include <test_environment_state.hpp>

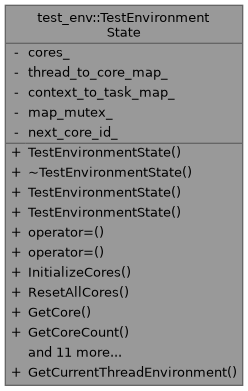

Collaboration diagram for test_env::TestEnvironmentState:

Public Member Functions
	TestEnvironmentState ()=default
	~TestEnvironmentState ()=default
	TestEnvironmentState (const TestEnvironmentState &)=delete
	TestEnvironmentState (TestEnvironmentState &&)=delete
auto	operator= (const TestEnvironmentState &) -> TestEnvironmentState &=delete
auto	operator= (TestEnvironmentState &&) -> TestEnvironmentState &=delete
void	InitializeCores (size_t num_cores)
	初始化指定数量的核心
void	ResetAllCores ()
	重置所有核心状态（中断、页表、历史记录）
auto	GetCore (size_t core_id) -> CoreEnvironment &
	获取指定核心的环境
auto	GetCoreCount () const -> size_t
	获取核心数量
void	BindThreadToCore (std::thread::id tid, size_t core_id)
	将指定线程绑定到核心
auto	GetCoreIdForThread (std::thread::id tid) -> size_t
	获取线程对应的核心 ID
auto	GetCurrentCoreEnv () -> CoreEnvironment &
	获取当前线程的核心环境
void	RegisterTaskContext (void *context_ptr, TaskControlBlock *task)
	注册任务上下文，建立上下文指针到任务的映射
void	UnregisterTaskContext (void *context_ptr)
	注销任务上下文
auto	FindTaskByContext (void *context_ptr) -> TaskControlBlock *
	通过上下文指针查找任务
void	DumpAllCoreStates () const
	打印所有核心的状态信息
auto	GetAllSwitchHistory () const -> std::vector< CoreEnvironment::SwitchEvent >
	获取所有核心的切换历史，按时间戳排序
void	ClearSwitchHistory ()
	清空所有核心的切换历史
void	SetCurrentThreadEnvironment ()
	设置当前线程的环境实例指针
void	ClearCurrentThreadEnvironment ()
	清除当前线程的环境实例指针

Static Public Member Functions
static auto	GetCurrentThreadEnvironment () -> TestEnvironmentState *
	获取当前线程的环境实例指针（供 Mock 层调用）

Private Attributes
std::vector< CoreEnvironment >	cores_
std::unordered_map< std::thread::id, size_t >	thread_to_core_map_
std::unordered_map< void *, TaskControlBlock * >	context_to_task_map_
std::mutex	map_mutex_
size_t	next_core_id_ = 0

Detailed Description

测试环境状态

设计说明：

• 每个测试 Fixture 持有自己独立的 TestEnvironmentState 实例
• 通过线程局部指针 (thread_local) 让 Mock 层能访问当前测试的环境
• 这样既保证了测试隔离，又让 Mock 层无需显式传递环境参数

工作流程：

1. 测试 Fixture 创建 TestEnvironmentState 实例（成员变量）
2. SetUp() 中调用 SetCurrentThreadEnvironment() 设置线程局部指针
3. Mock 层通过 GetCurrentThreadEnvironment() 获取当前环境
4. TearDown() 中调用 ClearCurrentThreadEnvironment() 清理

示例：

class MyTest : public ::testing::Test {
 protected:
  void SetUp() override {
    env_.InitializeCores(2);
    env_.SetCurrentThreadEnvironment();  // 关键：设置线程局部指针
    env_.BindThreadToCore(std::this_thread::get_id(), 0);
  }
  void TearDown() override {
    env_.ClearCurrentThreadEnvironment();  // 清理
  }
  TestEnvironmentState env_;  // 每个测试独立的环境
};

Definition at line 86 of file test_environment_state.hpp.

Constructor & Destructor Documentation

TestEnvironmentState() [1/3]

test_env::TestEnvironmentState::TestEnvironmentState ( )

default

~TestEnvironmentState()

test_env::TestEnvironmentState::~TestEnvironmentState ( )

default

TestEnvironmentState() [2/3]

test_env::TestEnvironmentState::TestEnvironmentState ( const TestEnvironmentState &  )

delete

TestEnvironmentState() [3/3]

test_env::TestEnvironmentState::TestEnvironmentState ( TestEnvironmentState &&  )

delete

Member Function Documentation

BindThreadToCore()

void test_env::TestEnvironmentState::BindThreadToCore	(	std::thread::id	tid,
		size_t	core_id
	)

将指定线程绑定到核心

Parameters

tid	线程 ID
core_id	核心 ID

Note

用于多核测试，每个工作线程需要绑定到不同核心

Definition at line 66 of file test_environment_state.cpp.

                                                            {
  std::lock_guard<std::mutex> lock(map_mutex_);
  if (core_id >= cores_.size()) {
    throw std::out_of_range("Invalid core_id: " + std::to_string(core_id));
  }
  thread_to_core_map_[tid] = core_id;
  cores_[core_id].thread_id = tid;
}

Here is the caller graph for this function:

ClearCurrentThreadEnvironment()

void test_env::TestEnvironmentState::ClearCurrentThreadEnvironment

(

)

清除当前线程的环境实例指针

Note

应在 TearDown() 中调用

Definition at line 22 of file test_environment_state.cpp.

                                                         {
  current_thread_env = nullptr;
}

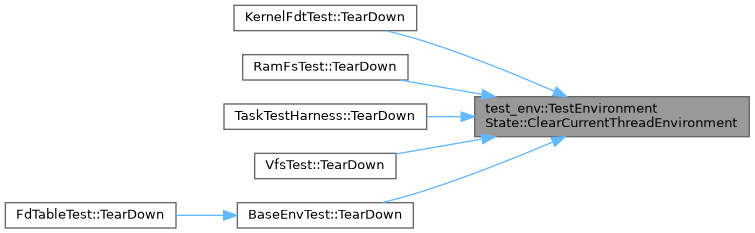

Here is the caller graph for this function:

ClearSwitchHistory()

void test_env::TestEnvironmentState::ClearSwitchHistory

(

)

清空所有核心的切换历史

Definition at line 162 of file test_environment_state.cpp.

                                              {
  std::lock_guard<std::mutex> lock(map_mutex_);
  for (auto& core : cores_) {
    core.switch_history.clear();
  }
}

Here is the caller graph for this function:

DumpAllCoreStates()

void test_env::TestEnvironmentState::DumpAllCoreStates

(

)

const

打印所有核心的状态信息

Definition at line 127 of file test_environment_state.cpp.

                                                   {
  std::lock_guard<std::mutex> lock(map_mutex_);
  std::cout << "\n=== Test Environment State Dump ===" << std::endl;
  std::cout << "Total cores: " << cores_.size() << std::endl;

  for (const auto& core : cores_) {
    std::cout << "\nCore " << core.core_id << ":" << std::endl;
    std::cout << "  Interrupt enabled: " << core.interrupt_enabled << std::endl;
    std::cout << "  Page directory: 0x" << std::hex << core.page_directory
              << std::dec << std::endl;
    std::cout << "  Paging enabled: " << core.paging_enabled << std::endl;
    std::cout << "  Switch history size: " << core.switch_history.size()
              << std::endl;
  }
  std::cout << "==================================\n" << std::endl;
}

FindTaskByContext()

auto test_env::TestEnvironmentState::FindTaskByContext

(

void *

context_ptr

)

-> TaskControlBlock*

通过上下文指针查找任务

Returns

任务指针，未找到返回 nullptr

Definition at line 117 of file test_environment_state.cpp.

                         {
  std::lock_guard<std::mutex> lock(map_mutex_);
  auto it = context_to_task_map_.find(context_ptr);
  if (it != context_to_task_map_.end()) {
    return it->second;
  }
  return nullptr;
}

GetAllSwitchHistory()

auto test_env::TestEnvironmentState::GetAllSwitchHistory

(

)

const -> std::vector<CoreEnvironment::SwitchEvent>

获取所有核心的切换历史，按时间戳排序

Returns

切换事件列表

Definition at line 144 of file test_environment_state.cpp.

                                             {
  std::lock_guard<std::mutex> lock(map_mutex_);
  std::vector<CoreEnvironment::SwitchEvent> all_events;

  for (const auto& core : cores_) {
    all_events.insert(all_events.end(), core.switch_history.begin(),
                      core.switch_history.end());
  }

  // 按时间戳排序
  std::sort(
      all_events.begin(), all_events.end(),
      [](const auto& a, const auto& b) { return a.timestamp < b.timestamp; });

  return all_events;
}

GetCore()

auto test_env::TestEnvironmentState::GetCore

(

size_t

core_id

)

-> CoreEnvironment&

获取指定核心的环境

Parameters

core_id

核心 ID

Returns

核心环境引用

Exceptions

std::out_of_range

如果 core_id 无效

Definition at line 53 of file test_environment_state.cpp.

                                                                     {
  std::lock_guard<std::mutex> lock(map_mutex_);
  if (core_id >= cores_.size()) {
    throw std::out_of_range("Invalid core_id: " + std::to_string(core_id));
  }
  return cores_[core_id];
}

GetCoreCount()

auto test_env::TestEnvironmentState::GetCoreCount

(

)

const -> size_t

获取核心数量

Definition at line 61 of file test_environment_state.cpp.

                                                        {
  std::lock_guard<std::mutex> lock(map_mutex_);
  return cores_.size();
}

GetCoreIdForThread()

auto test_env::TestEnvironmentState::GetCoreIdForThread

(

std::thread::id

tid

)

-> size_t

获取线程对应的核心 ID

Parameters

tid

线程 ID

Returns

核心 ID，如果未绑定则自动分配

Definition at line 76 of file test_environment_state.cpp.

                                                                       {
  std::lock_guard<std::mutex> lock(map_mutex_);
  auto it = thread_to_core_map_.find(tid);
  if (it != thread_to_core_map_.end()) {
    return it->second;
  }

  // 自动分配一个核心 ID (兼容旧行为)
  if (next_core_id_ >= cores_.size()) {
    // 如果核心未初始化，默认创建单核环境
    if (cores_.empty()) {
      cores_.emplace_back(0);
    }
    next_core_id_ = 0;
  }

  size_t new_id = next_core_id_;
  thread_to_core_map_[tid] = new_id;
  cores_[new_id].thread_id = tid;
  next_core_id_ = (next_core_id_ + 1) % cores_.size();
  return new_id;
}

GetCurrentCoreEnv()

auto test_env::TestEnvironmentState::GetCurrentCoreEnv

(

)

-> CoreEnvironment&

获取当前线程的核心环境

Returns

当前线程对应的核心环境引用

Definition at line 99 of file test_environment_state.cpp.

                                                                 {
  auto tid = std::this_thread::get_id();
  size_t core_id = GetCoreIdForThread(tid);
  std::lock_guard<std::mutex> lock(map_mutex_);
  return cores_[core_id];
}

GetCurrentThreadEnvironment()

auto test_env::TestEnvironmentState::GetCurrentThreadEnvironment ( ) -> TestEnvironmentState*

static

获取当前线程的环境实例指针（供 Mock 层调用）

Returns

环境指针，如果未设置则返回 nullptr

用法：Mock 层（cpu_io.h、arch.cpp）通过这个函数获取当前测试的环境 例如：auto* env = TestEnvironmentState::GetCurrentThreadEnvironment();

Definition at line 26 of file test_environment_state.cpp.

                             {
  return current_thread_env;
}

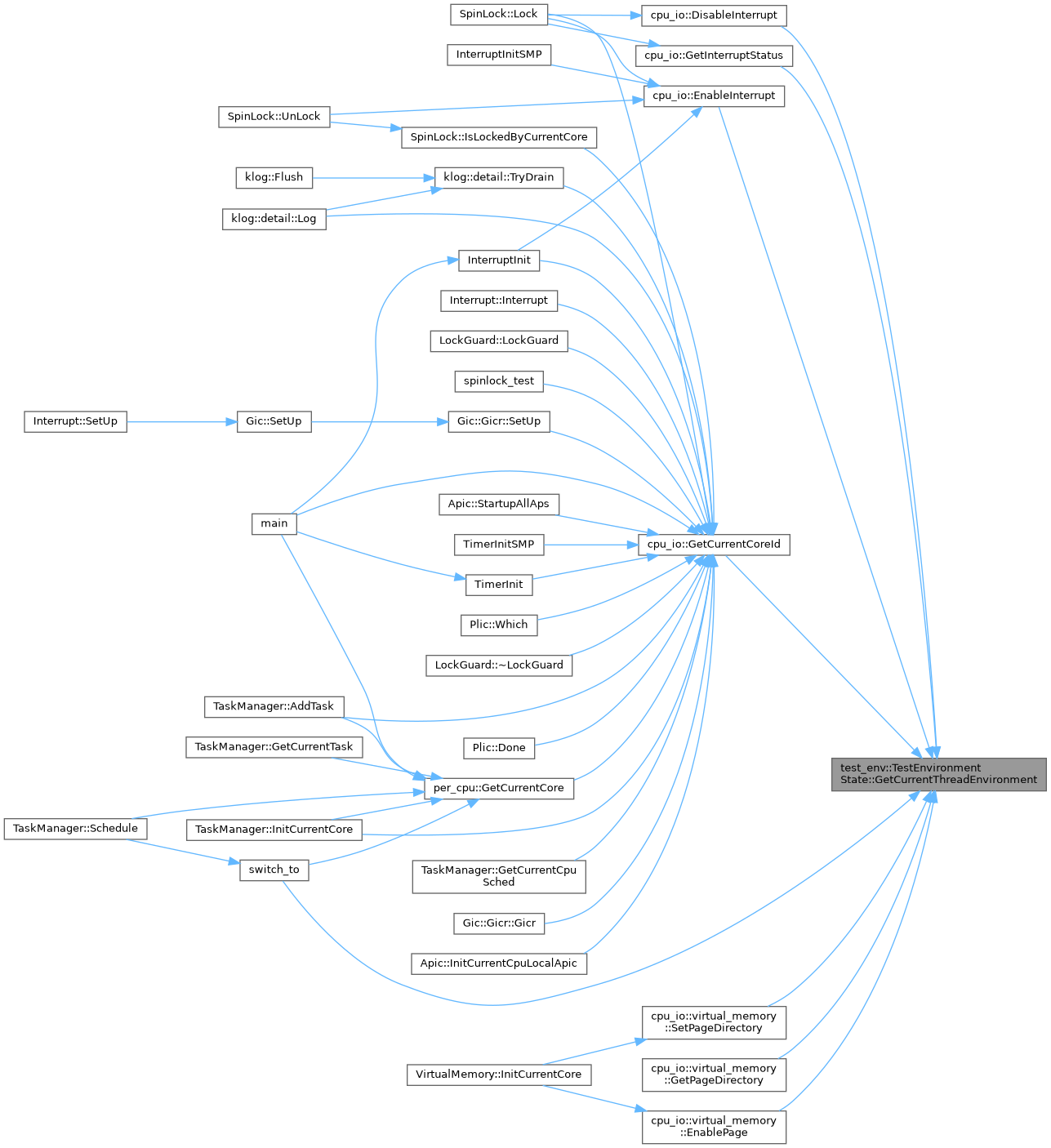

Here is the caller graph for this function:

InitializeCores()

void test_env::TestEnvironmentState::InitializeCores

(

size_t

num_cores

)

初始化指定数量的核心

Parameters

num_cores

核心数量

Note

通常在 SetUp() 中调用

Definition at line 31 of file test_environment_state.cpp.

                                                           {
  std::lock_guard<std::mutex> lock(map_mutex_);
  cores_.clear();
  cores_.reserve(num_cores);
  for (size_t i = 0; i < num_cores; ++i) {
    cores_.emplace_back(i);
  }
}

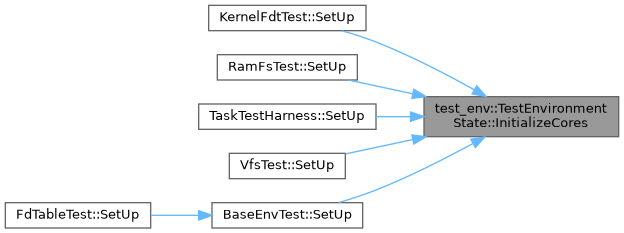

Here is the caller graph for this function:

operator=() [1/2]

auto test_env::TestEnvironmentState::operator= ( const TestEnvironmentState &  ) -> TestEnvironmentState &=delete

delete

operator=() [2/2]

auto test_env::TestEnvironmentState::operator= ( TestEnvironmentState &&  ) -> TestEnvironmentState &=delete

delete

RegisterTaskContext()

void test_env::TestEnvironmentState::RegisterTaskContext	(	void *	context_ptr,
		TaskControlBlock *	task
	)

注册任务上下文，建立上下文指针到任务的映射

Parameters

context_ptr	任务的上下文指针（&task.task_context）
task	任务指针

Note

switch_to 需要通过上下文指针找到对应任务

Definition at line 106 of file test_environment_state.cpp.

                                                                       {
  std::lock_guard<std::mutex> lock(map_mutex_);
  context_to_task_map_[context_ptr] = task;
}

ResetAllCores()

void test_env::TestEnvironmentState::ResetAllCores

(

)

重置所有核心状态（中断、页表、历史记录）

Note

不会改变核心数量，只重置状态

Definition at line 40 of file test_environment_state.cpp.

                                         {
  std::lock_guard<std::mutex> lock(map_mutex_);
  for (auto& core : cores_) {
    core.interrupt_enabled = true;
    core.page_directory = 0;
    core.paging_enabled = false;
    core.switch_history.clear();
  }
  thread_to_core_map_.clear();
  context_to_task_map_.clear();
  next_core_id_ = 0;
}

SetCurrentThreadEnvironment()

void test_env::TestEnvironmentState::SetCurrentThreadEnvironment

(

)

设置当前线程的环境实例指针

Note

必须在 SetUp() 中调用，让 Mock 层能访问这个环境

原理：设置一个 thread_local 指针指向 this 效果：同一线程中，Mock 层可以通过 GetCurrentThreadEnvironment() 获取这个环境

Definition at line 18 of file test_environment_state.cpp.

                                                       {
  current_thread_env = this;
}

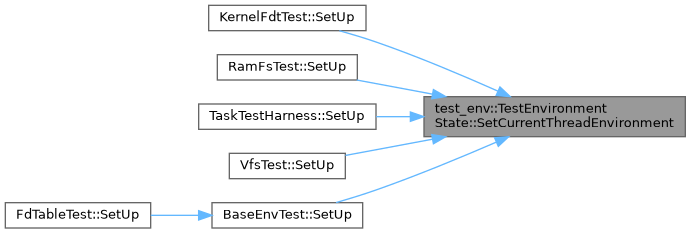

Here is the caller graph for this function:

UnregisterTaskContext()

void test_env::TestEnvironmentState::UnregisterTaskContext

(

void *

context_ptr

)

注销任务上下文

Definition at line 112 of file test_environment_state.cpp.

                                                                  {
  std::lock_guard<std::mutex> lock(map_mutex_);
  context_to_task_map_.erase(context_ptr);
}

Member Data Documentation

context_to_task_map_

std::unordered_map<void*, TaskControlBlock*> test_env::TestEnvironmentState::context_to_task_map_

private

Definition at line 211 of file test_environment_state.hpp.

cores_

std::vector<CoreEnvironment> test_env::TestEnvironmentState::cores_

private

Definition at line 205 of file test_environment_state.hpp.

map_mutex_

std::mutex test_env::TestEnvironmentState::map_mutex_

mutableprivate

Definition at line 214 of file test_environment_state.hpp.

next_core_id_

size_t test_env::TestEnvironmentState::next_core_id_ = 0

private

Definition at line 217 of file test_environment_state.hpp.

thread_to_core_map_

std::unordered_map<std::thread::id, size_t> test_env::TestEnvironmentState::thread_to_core_map_

private

Definition at line 208 of file test_environment_state.hpp.

---

The documentation for this class was generated from the following files:

• /workspaces/SimpleKernel/tests/unit_test/mocks/test_environment_state.hpp
• /workspaces/SimpleKernel/tests/unit_test/mocks/test_environment_state.cpp
