KernelFdt Class Reference

FDT（Flattened Device Tree）解析器 More...

#include <kernel_fdt.hpp>

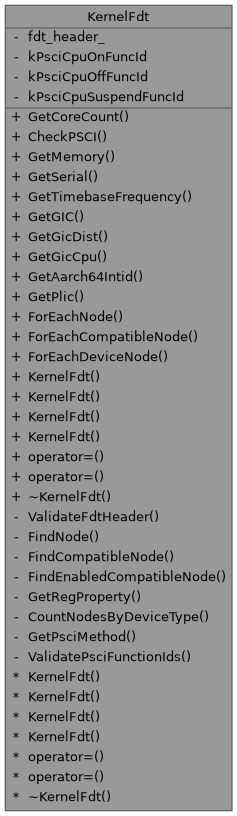

Collaboration diagram for KernelFdt:

Public Member Functions
auto	GetCoreCount () const -> Expected< size_t >
	获取 CPU 核心数量
auto	CheckPSCI () const -> Expected< void >
	判断 PSCI 信息
auto	GetMemory () const -> Expected< std::pair< uint64_t, size_t > >
	获取内存信息
auto	GetSerial () const -> Expected< std::tuple< uint64_t, size_t, uint32_t > >
	获取串口信息
auto	GetTimebaseFrequency () const -> Expected< uint32_t >
	获取 CPU 时钟频率
auto	GetGIC () const -> Expected< std::tuple< uint64_t, size_t, uint64_t, size_t > >
	获取 GIC 信息
auto	GetGicDist () const -> Expected< std::pair< uint64_t, size_t > >
	获取 GIC Distributor 信息
auto	GetGicCpu () const -> Expected< std::pair< uint64_t, size_t > >
	获取 GIC CPU Interface (Redistributor) 信息
auto	GetAarch64Intid (const char *compatible) const -> Expected< uint64_t >
	获取 aarch64 中断号
auto	GetPlic () const -> Expected< std::tuple< uint64_t, uint64_t, uint32_t, uint32_t > >
	获取 PLIC 信息
template<typename Callback >
auto	ForEachNode (Callback &&callback) const -> Expected< void >
	遍历 FDT 中所有设备节点
template<typename Callback >
auto	ForEachCompatibleNode (const char *compatible, Callback &&callback) const -> Expected< void >
	遍历所有匹配指定 compatible 的 FDT 节点
template<typename Callback >
auto	ForEachDeviceNode (Callback &&callback) const -> Expected< void >
	遍历 FDT 中所有"叶设备"节点，自动跳过基础设施节点。
构造/析构函数
	KernelFdt (uint64_t header)
	构造函数
	KernelFdt ()=default
	KernelFdt (const KernelFdt &)=default
	KernelFdt (KernelFdt &&)=default
auto	operator= (const KernelFdt &) -> KernelFdt &=default
auto	operator= (KernelFdt &&) -> KernelFdt &=default
	~KernelFdt ()=default

Private Member Functions
auto	ValidateFdtHeader () const -> Expected< void >
	验证 FDT header
auto	FindNode (const char *path) const -> Expected< int >
	按路径查找节点
auto	FindCompatibleNode (const char *compatible) const -> Expected< int >
	按 compatible 查找第一个匹配的节点
auto	FindEnabledCompatibleNode (const char *compatible) const -> Expected< int >
	根据 compatible 查找已启用的节点（跳过 status="disabled"）
auto	GetRegProperty (int offset) const -> Expected< std::pair< uint64_t, size_t > >
	获取 reg 属性（返回第一个 reg 条目）
auto	CountNodesByDeviceType (const char *device_type) const -> Expected< size_t >
	按 device_type 统计节点数量
auto	GetPsciMethod (int offset) const -> Expected< const char * >
	获取 PSCI method 属性
auto	ValidatePsciFunctionIds (int offset) const -> Expected< void >
	验证 PSCI 函数 ID

Private Attributes
fdt_header *	fdt_header_ {nullptr}
	FDT header 指针

Static Private Attributes
static constexpr uint64_t	kPsciCpuOnFuncId = 0xC4000003
static constexpr uint64_t	kPsciCpuOffFuncId = 0x84000002
static constexpr uint64_t	kPsciCpuSuspendFuncId = 0xC4000001

Detailed Description

FDT（Flattened Device Tree）解析器

Copyright

Copyright The SimpleKernel Contributors

提供对 FDT 的解析功能，包括节点查找、属性读取、设备枚举等。

Precondition

FDT 数据必须是有效的 DTB 格式

Postcondition

通过各 Get* 方法可获取设备树中的硬件信息

Note

ForEachNode、ForEachCompatibleNode 和 ForEachDeviceNode 是模板方法，保留在头文件中

compatible 属性是 stringlist 格式（多个以 '\0' 分隔的字符串）， 回调接收完整的 compatible 数据和长度

Definition at line 47 of file kernel_fdt.hpp.

Constructor & Destructor Documentation

KernelFdt() [1/4]

KernelFdt::KernelFdt ( uint64_t  header )

inlineexplicit

构造函数

Parameters

header

fdt 数据地址

Precondition

header 指向有效的 DTB 数据

Postcondition

fdt_header_ 已初始化并通过校验

Definition at line 626 of file kernel_fdt.hpp.

      : fdt_header_(reinterpret_cast<fdt_header*>(header)) {
    ValidateFdtHeader().or_else([](auto&& err) {
      klog::Err("KernelFdt init failed: {}", err.message());
      while (true) {
        cpu_io::Pause();
      }
      return Expected<void>{};
    });

    klog::Debug("Load dtb at [{:#X}], size [{:#X}]",
                static_cast<uint64_t>(reinterpret_cast<uintptr_t>(fdt_header_)),
                static_cast<uint64_t>(fdt32_to_cpu(fdt_header_->totalsize)));
  }

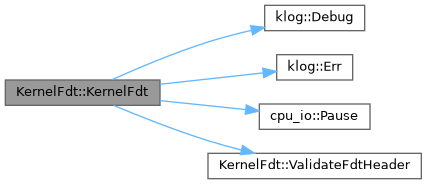

Here is the call graph for this function:

KernelFdt() [2/4]

KernelFdt::KernelFdt ( )

default

KernelFdt() [3/4]

KernelFdt::KernelFdt ( const KernelFdt &  )

default

KernelFdt() [4/4]

KernelFdt::KernelFdt ( KernelFdt &&  )

default

~KernelFdt()

KernelFdt::~KernelFdt ( )

default

Member Function Documentation

CheckPSCI()

auto KernelFdt::CheckPSCI ( ) const -> Expected<void>

inline

判断 PSCI 信息

Returns

Expected<void> 成功返回空，失败返回错误

Precondition

fdt_header_ 不为空

Definition at line 71 of file kernel_fdt.hpp.

                                                         {
    assert(fdt_header_ != nullptr && "fdt_header_ is null");

    return FindNode("/psci").and_then([this](int offset) -> Expected<void> {
      return GetPsciMethod(offset).and_then(
          [this, offset](const char* method) -> Expected<void> {
            klog::Debug("PSCI method: {}", method);
            if (strcmp(method, "smc") != 0) {
              return std::unexpected(Error(ErrorCode::kFdtPropertyNotFound));
            }
            return ValidatePsciFunctionIds(offset);
          });
    });
  }

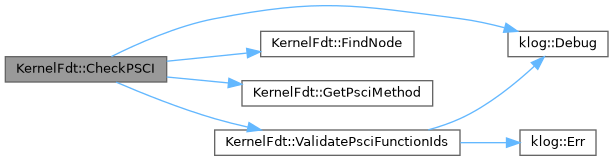

Here is the call graph for this function:

CountNodesByDeviceType()

auto KernelFdt::CountNodesByDeviceType ( const char *  device_type ) const -> Expected<size_t>

inlineprivate

按 device_type 统计节点数量

Parameters

device_type

设备类型

Returns

Expected<size_t> 节点数量

Definition at line 757 of file kernel_fdt.hpp.

                          {
    size_t count = 0;
    auto offset = -1;

    while (true) {
      offset = fdt_next_node(fdt_header_, offset, nullptr);
      if (offset < 0) {
        if (offset != -FDT_ERR_NOTFOUND) {
          return std::unexpected(Error(ErrorCode::kFdtParseFailed));
        }
        break;
      }

      const auto* prop =
          fdt_get_property(fdt_header_, offset, "device_type", nullptr);
      if (prop != nullptr) {
        const char* type = reinterpret_cast<const char*>(prop->data);
        if (strcmp(type, device_type) == 0) {
          ++count;
        }
      }
    }

    return count;
  }

Here is the caller graph for this function:

FindCompatibleNode()

auto KernelFdt::FindCompatibleNode ( const char *  compatible ) const -> Expected<int>

inlineprivate

按 compatible 查找第一个匹配的节点

Parameters

compatible

要查找的 compatible 字符串

Returns

Expected<int> 节点偏移量

Definition at line 690 of file kernel_fdt.hpp.

                       {
    auto offset = fdt_node_offset_by_compatible(fdt_header_, -1, compatible);
    if (offset < 0) {
      return std::unexpected(Error(ErrorCode::kFdtNodeNotFound));
    }
    return offset;
  }

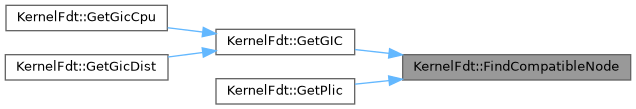

Here is the caller graph for this function:

FindEnabledCompatibleNode()

auto KernelFdt::FindEnabledCompatibleNode ( const char *  compatible ) const -> Expected<int>

inlineprivate

根据 compatible 查找已启用的节点（跳过 status="disabled"）

Parameters

compatible

要查找的 compatible 字符串

Returns

Expected<int> 节点偏移量

Definition at line 704 of file kernel_fdt.hpp.

                       {
    int offset = -1;
    while (true) {
      offset = fdt_node_offset_by_compatible(fdt_header_, offset, compatible);
      if (offset < 0) {
        return std::unexpected(Error(ErrorCode::kFdtNodeNotFound));
      }

      int len = 0;
      const auto* status_prop =
          fdt_get_property(fdt_header_, offset, "status", &len);

      if (status_prop == nullptr) {
        return offset;
      }

      const char* status = reinterpret_cast<const char*>(status_prop->data);
      if (strcmp(status, "okay") == 0 || strcmp(status, "ok") == 0) {
        return offset;
      }
    }
  }

Here is the caller graph for this function:

FindNode()

auto KernelFdt::FindNode ( const char *  path ) const -> Expected<int>

inlineprivate

按路径查找节点

Parameters

path	节点路径（如 "/memory"）

Returns

Expected<int> 节点偏移量

Definition at line 677 of file kernel_fdt.hpp.

                                                                       {
    auto offset = fdt_path_offset(fdt_header_, path);
    if (offset < 0) {
      return std::unexpected(Error(ErrorCode::kFdtNodeNotFound));
    }
    return offset;
  }

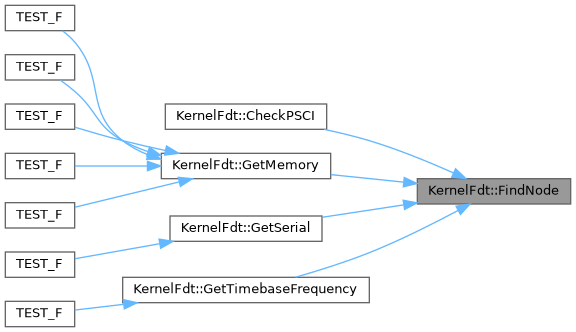

Here is the caller graph for this function:

ForEachCompatibleNode()

template<typename Callback >

auto KernelFdt::ForEachCompatibleNode ( const char *  compatible, Callback &&  callback  ) const -> Expected<void>

inline

遍历所有匹配指定 compatible 的 FDT 节点

Template Parameters

Callback

回调类型，签名： bool(int offset, const char* node_name, uint64_t mmio_base, size_t mmio_size, uint32_t irq) 返回 true 继续遍历，false 停止

Parameters

compatible	要匹配的 compatible 字符串
callback	节点处理函数

Returns

Expected<void>

Precondition

fdt_header_ 不为空

Note

使用 fdt_node_offset_by_compatible 的迭代模式， 可正确处理多个节点共享相同 compatible 的情况

Definition at line 451 of file kernel_fdt.hpp.

                        {
    assert(fdt_header_ != nullptr && "fdt_header_ is null");

    int offset = -1;
    while (true) {
      offset = fdt_node_offset_by_compatible(fdt_header_, offset, compatible);
      if (offset < 0) {
        if (offset == -FDT_ERR_NOTFOUND) {
          break;
        }
        return std::unexpected(Error(ErrorCode::kFdtParseFailed));
      }

      const char* node_name = fdt_get_name(fdt_header_, offset, nullptr);
      if (node_name == nullptr) {
        continue;
      }

      uint64_t mmio_base = 0;
      size_t mmio_size = 0;
      int reg_len = 0;
      const auto* reg_prop =
          fdt_get_property(fdt_header_, offset, "reg", &reg_len);
      if (reg_prop != nullptr &&
          static_cast<size_t>(reg_len) >= 2 * sizeof(uint64_t)) {
        const auto* reg = reinterpret_cast<const uint64_t*>(reg_prop->data);
        mmio_base = fdt64_to_cpu(reg[0]);
        mmio_size = fdt64_to_cpu(reg[1]);
      }

      uint32_t irq = 0;
      int irq_len = 0;
      const auto* irq_prop =
          fdt_get_property(fdt_header_, offset, "interrupts", &irq_len);
      if (irq_prop != nullptr &&
          static_cast<size_t>(irq_len) >= sizeof(uint32_t)) {
        const auto* interrupts =
            reinterpret_cast<const uint32_t*>(irq_prop->data);
        irq = fdt32_to_cpu(interrupts[0]);
      }

      if (!callback(offset, node_name, mmio_base, mmio_size, irq)) {
        break;
      }
    }

    return {};
  }

Here is the caller graph for this function:

ForEachDeviceNode()

template<typename Callback >

auto KernelFdt::ForEachDeviceNode ( Callback &&  callback ) const -> Expected<void>

inline

遍历 FDT 中所有"叶设备"节点，自动跳过基础设施节点。

在 ForEachNode 的基础上，额外过滤掉以下节点：

• 具有 interrupt-controller 属性（中断控制器）
• 具有 #clock-cells 属性（时钟提供者）
• device_type = "cpu" 或 device_type = "memory"

Template Parameters

Callback

签名与 ForEachNode 完全相同： bool(const char* node_name, const char* compatible_data, size_t compatible_len, uint64_t mmio_base, size_t mmio_size, uint32_t irq)

Parameters

callback

节点处理函数，返回 false 停止遍历

Returns

Expected<void>

Precondition

fdt_header_ 不为空

Definition at line 519 of file kernel_fdt.hpp.

                        {
    assert(fdt_header_ != nullptr && "ForEachDeviceNode: fdt_header_ is null");

    int offset = -1;
    int depth = 0;

    while (true) {
      offset = fdt_next_node(fdt_header_, offset, &depth);
      if (offset < 0) {
        if (offset == -FDT_ERR_NOTFOUND) {
          break;
        }
        return std::unexpected(Error(ErrorCode::kFdtParseFailed));
      }

      const char* node_name = fdt_get_name(fdt_header_, offset, nullptr);
      if (node_name == nullptr) {
        continue;
      }

      // status 过滤（与 ForEachNode 相同）
      int status_len = 0;
      const auto* status_prop =
          fdt_get_property(fdt_header_, offset, "status", &status_len);
      if (status_prop != nullptr) {
        const char* status = reinterpret_cast<const char*>(status_prop->data);
        if (strcmp(status, "okay") != 0 && strcmp(status, "ok") != 0) {
          continue;
        }
      }

      // 基础设施节点过滤
      if (fdt_getprop(fdt_header_, offset, "interrupt-controller", nullptr) !=
          nullptr) {
        continue;
      }
      if (fdt_getprop(fdt_header_, offset, "#clock-cells", nullptr) !=
          nullptr) {
        continue;
      }
      {
        int dt_len = 0;
        const auto* dt_prop =
            fdt_get_property(fdt_header_, offset, "device_type", &dt_len);
        if (dt_prop != nullptr) {
          const char* dt = reinterpret_cast<const char*>(dt_prop->data);
          if (strcmp(dt, "cpu") == 0 || strcmp(dt, "memory") == 0) {
            continue;
          }
        }
      }

      // compatible 提取
      const char* compatible_data = nullptr;
      size_t compatible_len = 0;
      int compat_len = 0;
      const auto* compat_prop =
          fdt_get_property(fdt_header_, offset, "compatible", &compat_len);
      if (compat_prop != nullptr && compat_len > 0) {
        compatible_data = reinterpret_cast<const char*>(compat_prop->data);
        compatible_len = static_cast<size_t>(compat_len);
      }

      // reg 提取
      uint64_t mmio_base = 0;
      size_t mmio_size = 0;
      int reg_len = 0;
      const auto* reg_prop =
          fdt_get_property(fdt_header_, offset, "reg", &reg_len);
      if (reg_prop != nullptr &&
          static_cast<size_t>(reg_len) >= 2 * sizeof(uint64_t)) {
        const auto* reg = reinterpret_cast<const uint64_t*>(reg_prop->data);
        mmio_base = fdt64_to_cpu(reg[0]);
        mmio_size = fdt64_to_cpu(reg[1]);
      }

      // interrupts 提取
      uint32_t irq = 0;
      int irq_len = 0;
      const auto* irq_prop =
          fdt_get_property(fdt_header_, offset, "interrupts", &irq_len);
      if (irq_prop != nullptr &&
          static_cast<size_t>(irq_len) >= sizeof(uint32_t)) {
        const auto* interrupts =
            reinterpret_cast<const uint32_t*>(irq_prop->data);
        irq = fdt32_to_cpu(interrupts[0]);
      }

      if (!callback(node_name, compatible_data, compatible_len, mmio_base,
                    mmio_size, irq)) {
        break;
      }
    }

    return {};
  }

Here is the caller graph for this function:

ForEachNode()

template<typename Callback >

auto KernelFdt::ForEachNode ( Callback &&  callback ) const -> Expected<void>

inline

遍历 FDT 中所有设备节点

Template Parameters

Callback

回调类型，签名： bool(const char* node_name, const char* compatible_data, size_t compatible_len, uint64_t mmio_base, size_t mmio_size, uint32_t irq) 返回 true 继续遍历，false 停止

Parameters

callback

节点处理函数

Returns

Expected<void>

Precondition

fdt_header_ 不为空

Note

compatible_data 是完整的 stringlist（多个字符串以 '\0' 分隔）， compatible_len 是整个 stringlist 的字节长度。 若需要显示第一个 compatible 字符串，直接使用 compatible_data 即可。 若需要遍历所有 compatible 字符串，需按 '\0' 分隔迭代。

Definition at line 365 of file kernel_fdt.hpp.

                                                                              {
    assert(fdt_header_ != nullptr && "fdt_header_ is null");

    int offset = -1;
    int depth = 0;

    while (true) {
      offset = fdt_next_node(fdt_header_, offset, &depth);
      if (offset < 0) {
        if (offset == -FDT_ERR_NOTFOUND) {
          break;
        }
        return std::unexpected(Error(ErrorCode::kFdtParseFailed));
      }

      const char* node_name = fdt_get_name(fdt_header_, offset, nullptr);
      if (node_name == nullptr) {
        continue;
      }

      int status_len = 0;
      const auto* status_prop =
          fdt_get_property(fdt_header_, offset, "status", &status_len);
      if (status_prop != nullptr) {
        const char* status = reinterpret_cast<const char*>(status_prop->data);
        if (strcmp(status, "okay") != 0 && strcmp(status, "ok") != 0) {
          continue;
        }
      }

      const char* compatible_data = nullptr;
      size_t compatible_len = 0;
      int compat_len = 0;
      const auto* compat_prop =
          fdt_get_property(fdt_header_, offset, "compatible", &compat_len);
      if (compat_prop != nullptr && compat_len > 0) {
        compatible_data = reinterpret_cast<const char*>(compat_prop->data);
        compatible_len = static_cast<size_t>(compat_len);
      }

      uint64_t mmio_base = 0;
      size_t mmio_size = 0;
      int reg_len = 0;
      const auto* reg_prop =
          fdt_get_property(fdt_header_, offset, "reg", &reg_len);
      if (reg_prop != nullptr &&
          static_cast<size_t>(reg_len) >= 2 * sizeof(uint64_t)) {
        const auto* reg = reinterpret_cast<const uint64_t*>(reg_prop->data);
        mmio_base = fdt64_to_cpu(reg[0]);
        mmio_size = fdt64_to_cpu(reg[1]);
      }

      uint32_t irq = 0;
      int irq_len = 0;
      const auto* irq_prop =
          fdt_get_property(fdt_header_, offset, "interrupts", &irq_len);
      if (irq_prop != nullptr &&
          static_cast<size_t>(irq_len) >= sizeof(uint32_t)) {
        const auto* interrupts =
            reinterpret_cast<const uint32_t*>(irq_prop->data);
        irq = fdt32_to_cpu(interrupts[0]);
      }

      if (!callback(node_name, compatible_data, compatible_len, mmio_base,
                    mmio_size, irq)) {
        break;
      }
    }

    return {};
  }

Here is the caller graph for this function:

GetAarch64Intid()

auto KernelFdt::GetAarch64Intid ( const char *  compatible ) const -> Expected<uint64_t>

inline

获取 aarch64 中断号

Parameters

compatible

要查找的 compatible 字符串

Returns

Expected<uint64_t> intid

Precondition

fdt_header_ 不为空

Definition at line 262 of file kernel_fdt.hpp.

                            {
    assert(fdt_header_ != nullptr && "fdt_header_ is null");

    auto offset = FindEnabledCompatibleNode(compatible);
    if (!offset.has_value()) {
      return std::unexpected(offset.error());
    }

    int len = 0;
    const auto* prop =
        fdt_get_property(fdt_header_, offset.value(), "interrupts", &len);
    if (prop == nullptr) {
      return std::unexpected(Error(ErrorCode::kFdtPropertyNotFound));
    }

    const auto* interrupts = reinterpret_cast<const uint32_t*>(prop->data);

#ifdef SIMPLEKERNEL_DEBUG
    for (uint32_t i = 0; i < fdt32_to_cpu(prop->len);
         i += 3 * sizeof(uint32_t)) {
      auto type = fdt32_to_cpu(interrupts[i / sizeof(uint32_t) + 0]);
      auto intid = fdt32_to_cpu(interrupts[i / sizeof(uint32_t) + 1]);
      auto trigger = fdt32_to_cpu(interrupts[i / sizeof(uint32_t) + 2]) & 0xF;
      auto cpuid_mask =
          fdt32_to_cpu(interrupts[i / sizeof(uint32_t) + 2]) & 0xFF00;
      klog::Debug("type: {}, intid: {}, trigger: {}, cpuid_mask: {}", type,
                  intid, trigger, cpuid_mask);
    }
#endif

    uint64_t intid = 0;
    if (strcmp(compatible, "arm,armv8-timer") == 0) {
      intid = fdt32_to_cpu(interrupts[7]);
    } else if (strcmp(compatible, "arm,pl011") == 0) {
      intid = fdt32_to_cpu(interrupts[1]);
    }

    return intid;
  }

Here is the call graph for this function:

GetCoreCount()

auto KernelFdt::GetCoreCount ( ) const -> Expected<size_t>

inline

获取 CPU 核心数量

Returns

Expected<size_t> 成功返回核心数，失败返回错误

Precondition

fdt_header_ 不为空

Definition at line 54 of file kernel_fdt.hpp.

                                                              {
    assert(fdt_header_ != nullptr && "fdt_header_ is null");

    return CountNodesByDeviceType("cpu").and_then(
        [](size_t count) -> Expected<size_t> {
          if (count == 0) {
            return std::unexpected(Error(ErrorCode::kFdtNodeNotFound));
          }
          return count;
        });
  }

Here is the call graph for this function:

Here is the caller graph for this function:

GetGIC()

auto KernelFdt::GetGIC ( ) const -> Expected<std::tuple<uint64_t, size_t, uint64_t, size_t>>

inline

获取 GIC 信息

Returns

Expected<std::tuple<...>> <dist地址，dist大小，redist地址，redist大小>

Precondition

fdt_header_ 不为空

Definition at line 198 of file kernel_fdt.hpp.

                                                                {
    assert(fdt_header_ != nullptr && "fdt_header_ is null");

    auto offset = FindCompatibleNode("arm,gic-v3");
    if (!offset.has_value()) {
      return std::unexpected(offset.error());
    }

    int len = 0;
    const auto* prop =
        fdt_get_property(fdt_header_, offset.value(), "reg", &len);
    if (prop == nullptr) {
      return std::unexpected(Error(ErrorCode::kFdtPropertyNotFound));
    }

    uint64_t dist_base = 0;
    size_t dist_size = 0;
    uint64_t redist_base = 0;
    size_t redist_size = 0;

    const auto* reg = reinterpret_cast<const uint64_t*>(prop->data);
    if (static_cast<unsigned>(len) >= 2 * sizeof(uint64_t)) {
      dist_base = fdt64_to_cpu(reg[0]);
      dist_size = fdt64_to_cpu(reg[1]);
    }
    if (static_cast<unsigned>(len) >= 4 * sizeof(uint64_t)) {
      redist_base = fdt64_to_cpu(reg[2]);
      redist_size = fdt64_to_cpu(reg[3]);
    }

    return std::tuple{dist_base, dist_size, redist_base, redist_size};
  }

Here is the call graph for this function:

Here is the caller graph for this function:

GetGicCpu()

auto KernelFdt::GetGicCpu ( ) const -> Expected<std::pair<uint64_t, size_t>>

inline

获取 GIC CPU Interface (Redistributor) 信息

Returns

Expected<std::pair<uint64_t, size_t>>

Definition at line 248 of file kernel_fdt.hpp.

                                             {
    return GetGIC().transform(
        [](std::tuple<uint64_t, size_t, uint64_t, size_t> gic) {
          return std::pair{std::get<2>(gic), std::get<3>(gic)};
        });
  }

Here is the call graph for this function:

GetGicDist()

auto KernelFdt::GetGicDist ( ) const -> Expected<std::pair<uint64_t, size_t>>

inline

获取 GIC Distributor 信息

Returns

Expected<std::pair<uint64_t, size_t>>

Definition at line 236 of file kernel_fdt.hpp.

                                             {
    return GetGIC().transform(
        [](std::tuple<uint64_t, size_t, uint64_t, size_t> gic) {
          return std::pair{std::get<0>(gic), std::get<1>(gic)};
        });
  }

Here is the call graph for this function:

GetMemory()

auto KernelFdt::GetMemory ( ) const -> Expected<std::pair<uint64_t, size_t>>

inline

获取内存信息

Returns

Expected<std::pair<uint64_t, size_t>> 内存信息<地址，长度>

Precondition

fdt_header_ 不为空

Postcondition

返回第一个 reg 条目的 base 和 size

Definition at line 92 of file kernel_fdt.hpp.

                                             {
    assert(fdt_header_ != nullptr && "fdt_header_ is null");

    return FindNode("/memory").and_then(
        [this](int offset) -> Expected<std::pair<uint64_t, size_t>> {
          return GetRegProperty(offset).transform(
              [](std::pair<uint64_t, size_t> reg) { return reg; });
        });
  }

Here is the call graph for this function:

Here is the caller graph for this function:

GetPlic()

auto KernelFdt::GetPlic ( ) const -> Expected<std::tuple<uint64_t, uint64_t, uint32_t, uint32_t>>

inline

获取 PLIC 信息

Returns

Expected<std::tuple<...>> <地址，长度，中断源数量，上下文数量>

Precondition

fdt_header_ 不为空

See also

https://github.com/qemu/qemu/blob/master/hw/arm/virt.c

Definition at line 310 of file kernel_fdt.hpp.

                                                                    {
    assert(fdt_header_ != nullptr && "fdt_header_ is null");

    auto offset = FindCompatibleNode("sifive,plic-1.0.0");
    if (!offset.has_value()) {
      offset = FindCompatibleNode("riscv,plic0");
    }
    if (!offset.has_value()) {
      return std::unexpected(offset.error());
    }

    int len = 0;

    const auto* prop = fdt_get_property(fdt_header_, offset.value(),
                                        "interrupts-extended", &len);
    if (prop == nullptr) {
      return std::unexpected(Error(ErrorCode::kFdtPropertyNotFound));
    }

    uint32_t num_entries = len / sizeof(uint32_t);
    uint32_t context_count = num_entries / 2;

    prop = fdt_get_property(fdt_header_, offset.value(), "riscv,ndev", &len);
    if (prop == nullptr) {
      return std::unexpected(Error(ErrorCode::kFdtPropertyNotFound));
    }
    uint32_t ndev =
        fdt32_to_cpu(*reinterpret_cast<const uint32_t*>(prop->data));

    auto reg = GetRegProperty(offset.value());
    if (!reg.has_value()) {
      return std::unexpected(reg.error());
    }

    return std::tuple{reg.value().first, reg.value().second, ndev,
                      context_count};
  }

Here is the call graph for this function:

GetPsciMethod()

auto KernelFdt::GetPsciMethod ( int  offset ) const -> Expected<const char*>

inlineprivate

获取 PSCI method 属性

Parameters

offset

节点偏移

Returns

Expected<const char*> method 字符串

Definition at line 789 of file kernel_fdt.hpp.

                                                                              {
    int len = 0;
    const auto* prop = fdt_get_property(fdt_header_, offset, "method", &len);
    if (prop == nullptr) {
      return std::unexpected(Error(ErrorCode::kFdtPropertyNotFound));
    }
    return reinterpret_cast<const char*>(prop->data);
  }

Here is the caller graph for this function:

GetRegProperty()

auto KernelFdt::GetRegProperty ( int  offset ) const -> Expected<std::pair<uint64_t, size_t>>

inlineprivate

获取 reg 属性（返回第一个 reg 条目）

Parameters

offset

节点偏移量

Returns

Expected<std::pair<uint64_t, size_t>> base 和 size

Postcondition

返回第一个 <base, size> 对，而非最后一个

Definition at line 734 of file kernel_fdt.hpp.

                                             {
    int len = 0;
    const auto* prop = fdt_get_property(fdt_header_, offset, "reg", &len);
    if (prop == nullptr) {
      return std::unexpected(Error(ErrorCode::kFdtPropertyNotFound));
    }

    const auto* reg = reinterpret_cast<const uint64_t*>(prop->data);
    if (static_cast<size_t>(len) < 2 * sizeof(uint64_t)) {
      return std::unexpected(Error(ErrorCode::kFdtInvalidPropertySize));
    }

    uint64_t base = fdt64_to_cpu(reg[0]);
    size_t size = fdt64_to_cpu(reg[1]);
    return std::pair{base, size};
  }

Here is the caller graph for this function:

GetSerial()

auto KernelFdt::GetSerial ( ) const -> Expected<std::tuple<uint64_t, size_t, uint32_t>>

inline

获取串口信息

Returns

Expected<std::tuple<uint64_t, size_t, uint32_t>> <地址，长度，中断号>

Precondition

fdt_header_ 不为空

Definition at line 109 of file kernel_fdt.hpp.

                                                        {
    assert(fdt_header_ != nullptr && "fdt_header_ is null");

    auto chosen_offset = FindNode("/chosen");
    if (!chosen_offset.has_value()) {
      return std::unexpected(chosen_offset.error());
    }

    int len = 0;
    const auto* prop = fdt_get_property(fdt_header_, chosen_offset.value(),
                                        "stdout-path", &len);
    if (prop == nullptr || len <= 0) {
      return std::unexpected(Error(ErrorCode::kFdtPropertyNotFound));
    }

    const char* stdout_path = reinterpret_cast<const char*>(prop->data);
    std::array<char, 256> path_buffer;
    kstd::strncpy(path_buffer.data(), stdout_path, path_buffer.max_size() - 1);

    char* colon = strchr(path_buffer.data(), ':');
    if (colon != nullptr) {
      *colon = '\0';
    }

    int stdout_offset = -1;
    if (path_buffer[0] == '&') {
      const char* alias = path_buffer.data() + 1;
      const char* aliased_path = fdt_get_alias(fdt_header_, alias);
      if (aliased_path != nullptr) {
        stdout_offset = fdt_path_offset(fdt_header_, aliased_path);
      }
    } else {
      stdout_offset = fdt_path_offset(fdt_header_, path_buffer.data());
    }

    if (stdout_offset < 0) {
      return std::unexpected(Error(ErrorCode::kFdtNodeNotFound));
    }

    auto reg = GetRegProperty(stdout_offset);
    if (!reg.has_value()) {
      return std::unexpected(reg.error());
    }

    prop = fdt_get_property(fdt_header_, stdout_offset, "interrupts", &len);
    if (prop == nullptr) {
      return std::unexpected(Error(ErrorCode::kFdtPropertyNotFound));
    }

    uint32_t irq = 0;
    const auto* interrupts = reinterpret_cast<const uint32_t*>(prop->data);
    if (interrupts != nullptr && len != 0) {
      irq = fdt32_to_cpu(*interrupts);
    }

    return std::tuple{reg.value().first, reg.value().second, irq};
  }

Here is the call graph for this function:

Here is the caller graph for this function:

GetTimebaseFrequency()

auto KernelFdt::GetTimebaseFrequency ( ) const -> Expected<uint32_t>

inline

获取 CPU 时钟频率

Returns

Expected<uint32_t> 时钟频率

Precondition

fdt_header_ 不为空

Definition at line 173 of file kernel_fdt.hpp.

                                                                        {
    assert(fdt_header_ != nullptr && "fdt_header_ is null");

    return FindNode("/cpus").and_then([this](int offset) -> Expected<uint32_t> {
      int len = 0;
      const auto* prop = reinterpret_cast<const uint32_t*>(
          fdt_getprop(fdt_header_, offset, "timebase-frequency", &len));
      if (prop == nullptr) {
        return std::unexpected(Error(ErrorCode::kFdtPropertyNotFound));
      }

      if (len != sizeof(uint32_t)) {
        return std::unexpected(Error(ErrorCode::kFdtInvalidPropertySize));
      }

      return fdt32_to_cpu(*prop);
    });
  }

Here is the call graph for this function:

Here is the caller graph for this function:

operator=() [1/2]

auto KernelFdt::operator= ( const KernelFdt &  ) -> KernelFdt &=default

default

operator=() [2/2]

auto KernelFdt::operator= ( KernelFdt &&  ) -> KernelFdt &=default

default

ValidateFdtHeader()

auto KernelFdt::ValidateFdtHeader ( ) const -> Expected<void>

inlineprivate

验证 FDT header

Returns

Expected<void>

Definition at line 664 of file kernel_fdt.hpp.

                                                                 {
    assert(fdt_header_ != nullptr && "fdt_header_ is null");
    if (fdt_check_header(fdt_header_) != 0) {
      return std::unexpected(Error(ErrorCode::kFdtInvalidHeader));
    }
    return {};
  }

Here is the caller graph for this function:

ValidatePsciFunctionIds()

auto KernelFdt::ValidatePsciFunctionIds ( int  offset ) const -> Expected<void>

inlineprivate

验证 PSCI 函数 ID

Parameters

offset

节点偏移

Returns

Expected<void> 验证结果

Definition at line 803 of file kernel_fdt.hpp.

                        {
    auto validate_id = [this, offset](const char* name,
                                      uint64_t expected) -> Expected<void> {
      int len = 0;
      const auto* prop = fdt_get_property(fdt_header_, offset, name, &len);
      if (prop != nullptr && static_cast<size_t>(len) >= sizeof(uint32_t)) {
        uint32_t id =
            fdt32_to_cpu(*reinterpret_cast<const uint32_t*>(prop->data));
        klog::Debug("PSCI {} function ID: {:#X}", name, id);
        if (id != expected) {
          klog::Err("PSCI {} function ID mismatch: expected {:#X}, got {:#X}",
                    name, expected, id);
          return std::unexpected(Error(ErrorCode::kFdtPropertyNotFound));
        }
      }
      return {};
    };

    return validate_id("cpu_on", kPsciCpuOnFuncId)
        .and_then([&]() { return validate_id("cpu_off", kPsciCpuOffFuncId); })
        .and_then([&]() {
          return validate_id("cpu_suspend", kPsciCpuSuspendFuncId);
        });
  }

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

fdt_header_

fdt_header* KernelFdt::fdt_header_ {nullptr}

private

FDT header 指针

Definition at line 651 of file kernel_fdt.hpp.

{nullptr};

kPsciCpuOffFuncId

constexpr uint64_t KernelFdt::kPsciCpuOffFuncId = 0x84000002

staticconstexprprivate

Definition at line 657 of file kernel_fdt.hpp.

kPsciCpuOnFuncId

constexpr uint64_t KernelFdt::kPsciCpuOnFuncId = 0xC4000003

staticconstexprprivate

PSCI 标准函数 ID（SMC64 调用约定）

See also

https://developer.arm.com/documentation/den0022/fb/?lang=en

Note

高位 0xC4 表示 SMC64 快速调用，0x84 表示 SMC32 快速调用

Definition at line 656 of file kernel_fdt.hpp.

kPsciCpuSuspendFuncId

constexpr uint64_t KernelFdt::kPsciCpuSuspendFuncId = 0xC4000001

staticconstexprprivate

Definition at line 658 of file kernel_fdt.hpp.

---

The documentation for this class was generated from the following file:

• /workspaces/SimpleKernel/src/include/kernel_fdt.hpp
